SMLIGHT SLZB-MR3U | Multi-Radio Zigbee 3.0 & Thread Ethernet PoE Coordinator

SMLIGHT | SLZB-MR3U | Ethernet, Wi-Fi & PoE Dual Radio Zigbee 3.0 & Thread Coordinator

Take the stability and range of your smart home network to a professional level with the SMLIGHT SLZB-MR3U. This advanced multi-radio network adapter is specially designed for demanding home automation installations and combines two top-class radio chips in one sleek enclosure. Powered by a dual-core ESP32-S3 processor, this station runs simultaneously as a Zigbee 3.0 coordinator and a Matter-over-Thread Border Router. This allows you to effortlessly connect all your smart sensors and actuators to your central hub, regardless of where in the house your server is located.

Dual Radio Architecture: TI CC2674P10 & SiLabs EFR32MG24

Under the hood of the SLZB-MR3U are two separate, dedicated radio SoCs. Radio 1 is powered by the Texas Instruments CC2674P10 chip with +20 dBm power and extensive RAM for massive Zigbee networks. Radio 2 runs on the well-known Silicon Labs EFR32MG24 chip with a built-in AI/ML accelerator, optimized for Thread 1.3 and Matter. Thanks to this separate hardware architecture, both protocols can operate simultaneously at full power without interference or mutual capacity conflicts.

Maximum Flexibility: Ethernet with PoE, Wi-Fi and USB Passthrough

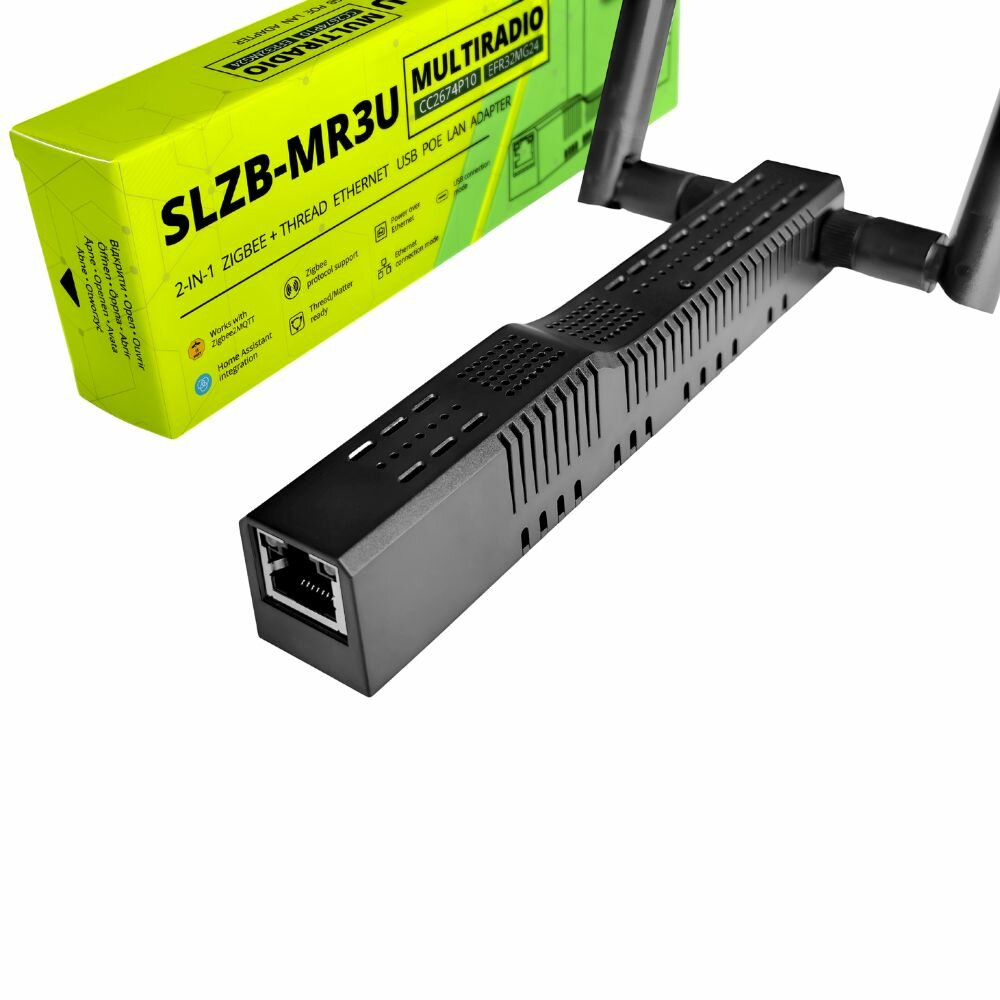

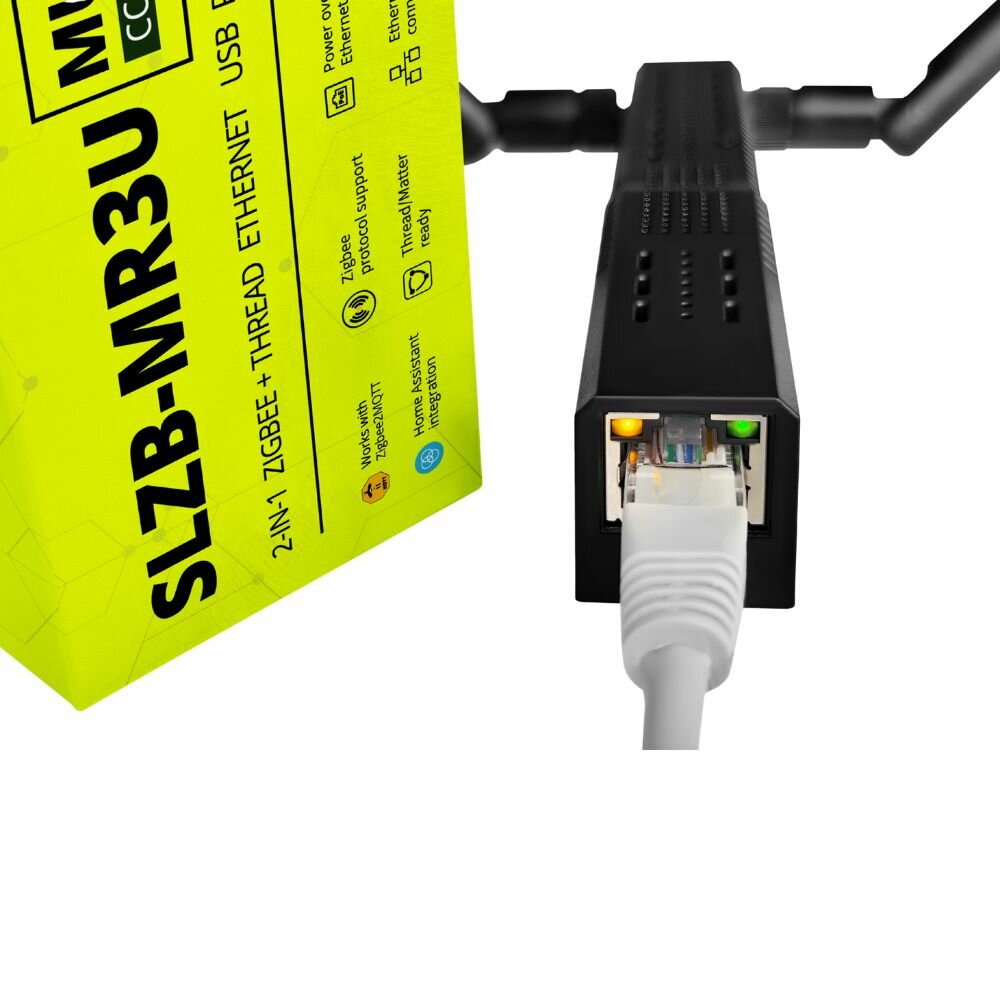

Place the coordinator in the most ideal, central location in the house for the best possible wireless range. The SLZB-MR3U supports four different connection methods: Power over Ethernet (802.3af PoE via the WIZnet W5500 Ethernet chip), regular LAN cable, 2.4 GHz Wi-Fi, and USB-C pass-through. With the built-in USB-A pass-through port, you can also connect an additional dongle (such as a Z-Wave or USB-serial converter) and transparently route it through your network. The built-in SLZB-OS offers an extensive web interface with OTA updates, WireGuard VPN, and an optional ESPHome flasher.

Ecosystems & Compatibility

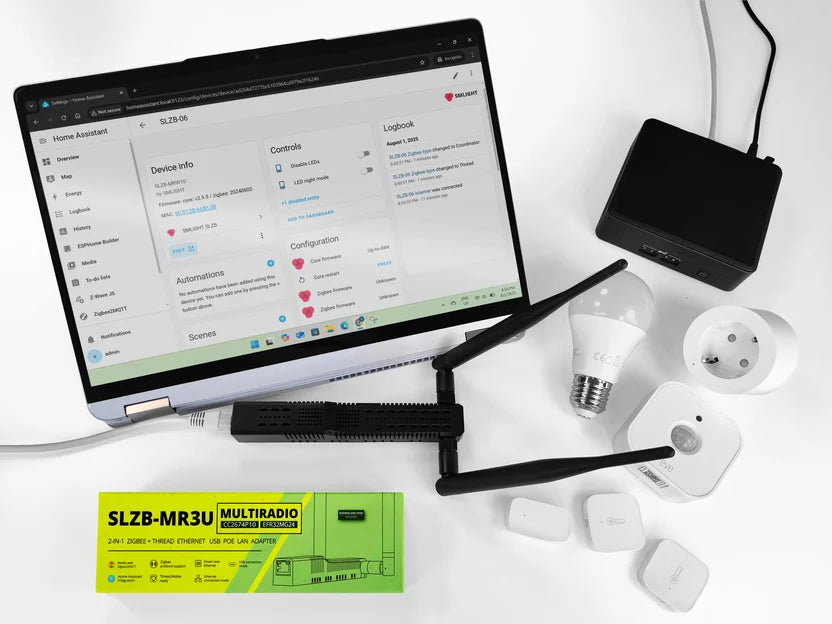

• Home Assistant: Fully supported via native Zigbee2MQTT and ZHA (Zigbee Home Automation) integrations. It also works directly as a Matter-over-Thread Border Router via OpenThread Border Router (OTBR). View our Home Assistant category for suitable hardware and extensions.

Pro-Tip from slimhuisje.nl: Power the SLZB-MR3U via a PoE switch in a central location in the home (for example, in the hallway on the 1st floor). This allows you to place the Zigbee coordinator far away from interference sources in your fuse box and create an ironclad mesh network throughout the entire house! Also check out our Zigbee controllers for additional options.

Features & Physical Actions

• Simultaneous dual radio: Simultaneous support for Zigbee 3.0 and Thread 1.3 (Matter-over-Thread).
• 4 connection options: Choose freely between Ethernet PoE (802.3af), LAN, Wi-Fi, or a direct USB-C connection.

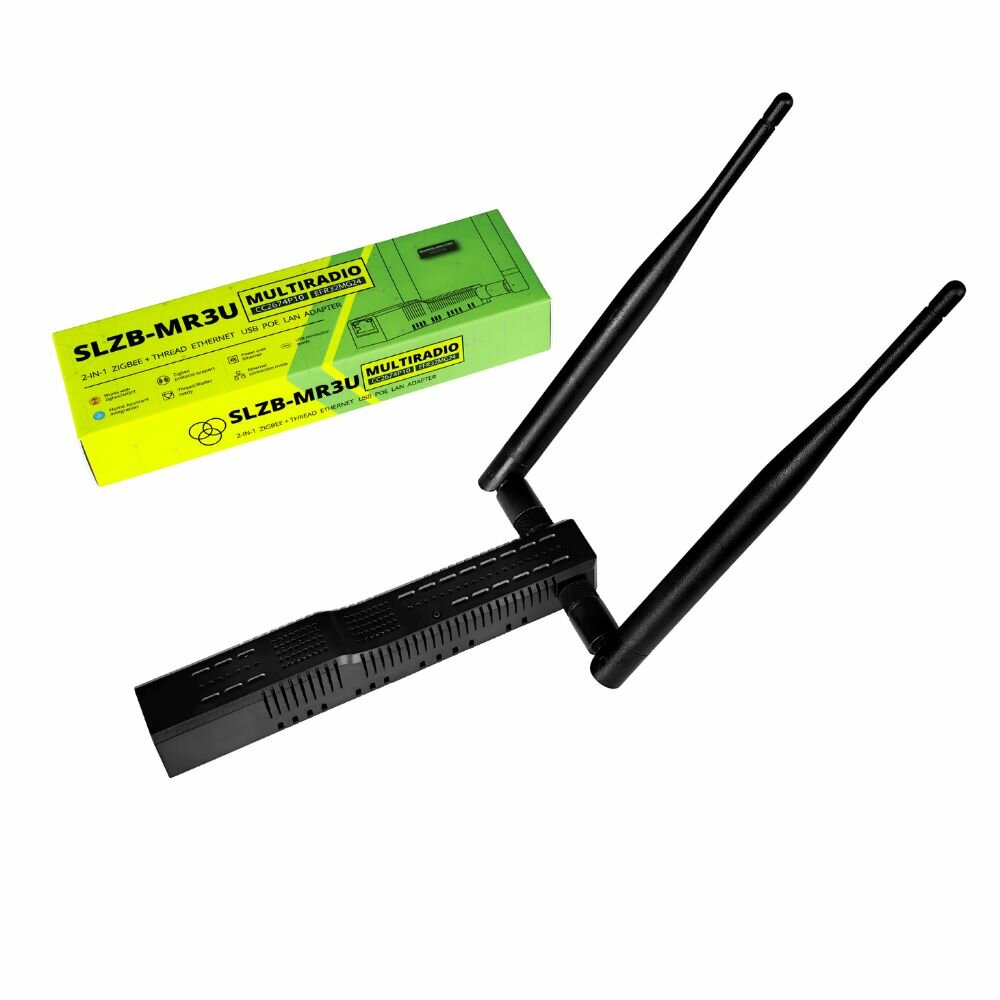

• Rotatable +5 dB antennas: 2x L-shaped antennas with 3-axis movement for optimal signal orientation.
• USB Passthrough: Connect an additional USB dongle to the port and route the serial signal through the network.
• 6 status LEDs & physical button: Direct visual feedback on radios, PoE, network link, activity, and mode management.

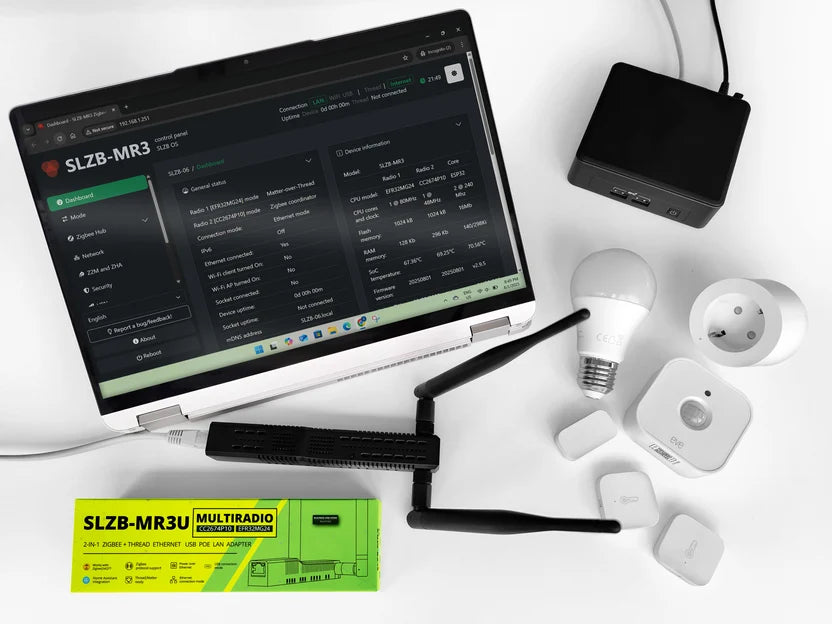

• Built-in SLZB-OS & ESPHome support: Web UI for network management, WireGuard, DDNS, and optional ESPHome flashing.

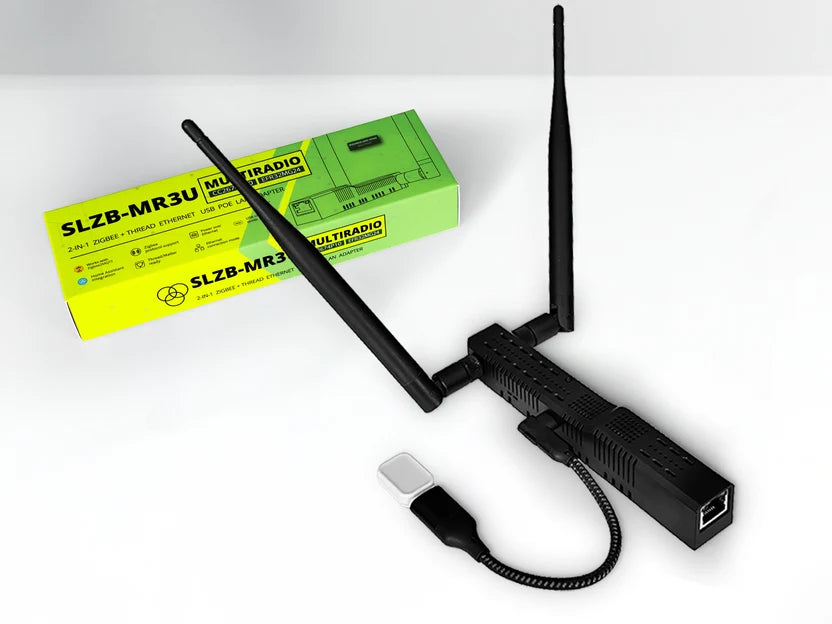

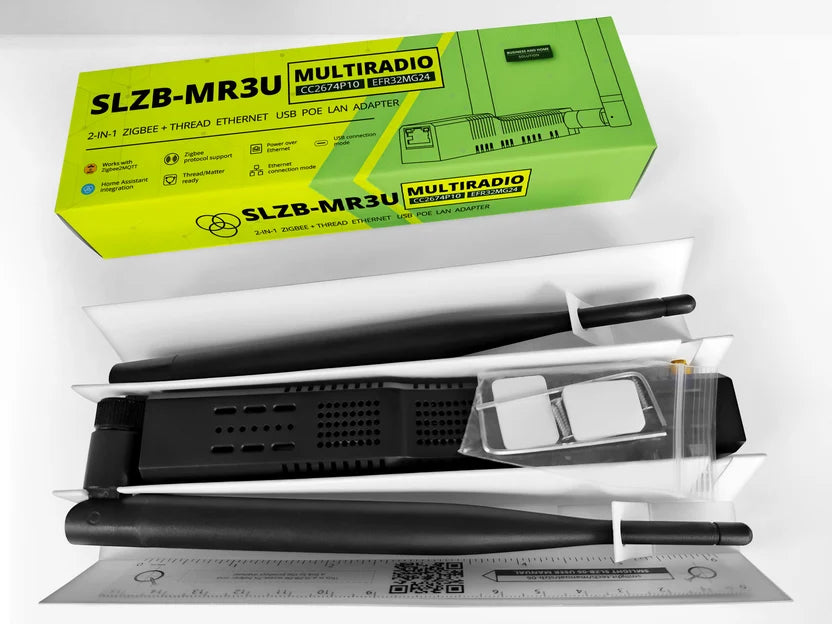

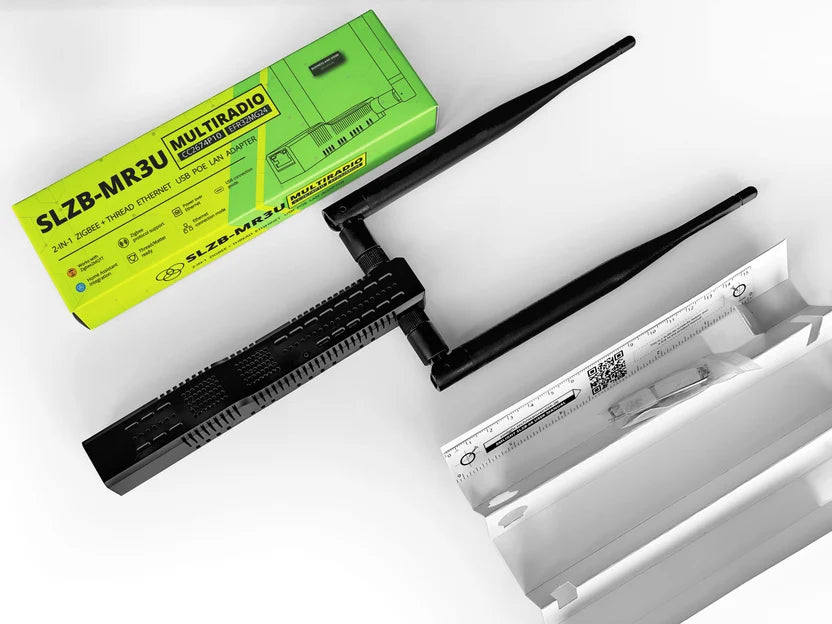

Package contents and dimensions

• 1x SMLIGHT SLZB-MR3U device
• 1x Zigbee antenna (+5 dB, rotatable)
• 1x Thread antenna (+5 dB, rotatable)
• 1x Mounting kit (2x screws, 2x 3M double-sided adhesive pads)
• 1x Allen key (3 mm for antennas)
• 1x QR code instruction card
• Product dimensions: 160 x 24 x 28 mm

Please note: A USB-C power cable and PoE injector/switch are not included. To use the adapter via network power, an 802.3af PoE-enabled switch or injector is required.

Technical specifications

Frequently Asked Questions (FAQ)

What is the difference between the SMLIGHT SLZB-MR3U and a regular Zigbee USB stick?

A standard USB stick must be plugged directly into your Home Assistant server. The SLZB-MR3U works via Ethernet and PoE, allowing you to place it anywhere in the house for the best range. Furthermore, the MR3U contains two separate radio chips for simultaneous Zigbee 3.0 and Matter-over-Thread support.

How do I connect the SLZB-MR3U to Home Assistant?

The coordinator works out-of-the-box with Zigbee2MQTT and ZHA via network IP (socket connection) or USB. Once you connect the adapter to your network, you can view the IP settings via the SLZB-OS web interface and connect the port to your Zigbee2MQTT or OTBR configuration.

Do I need Power over Ethernet (PoE) to use the adapter?

No, PoE is optional. If you do not have a PoE switch, you can also simply power the SLZB-MR3U via a standard USB-C power cable and adapter, while the data connection goes through Wi-Fi or Ethernet.

Can I also flash the SLZB-MR3U with ESPHome?

Yes! Thanks to the built-in ESP32-S3 chip and the built-in flasher in SLZB-OS, you can easily switch to ESPHome if that is your preference.

Does this adapter work as a stand-alone hub, or do I need a smart home platform?

The SLZB-MR3U serves as a coordinator and network interface. To control automations and smart devices, you connect the adapter to an overarching platform such as Home Assistant with Zigbee2MQTT or ZHA.
