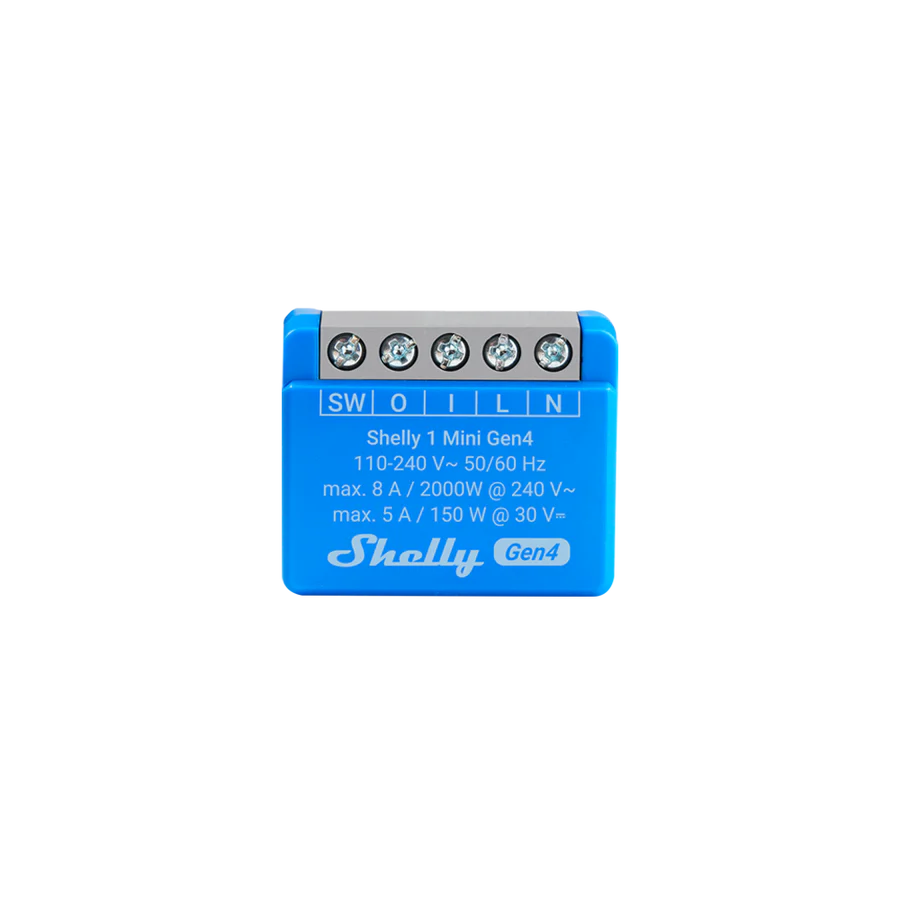

Shelly 1 Mini Gen4 – Compact built-in switch with WiFi, Zigbee and Matter

So small, so versatile

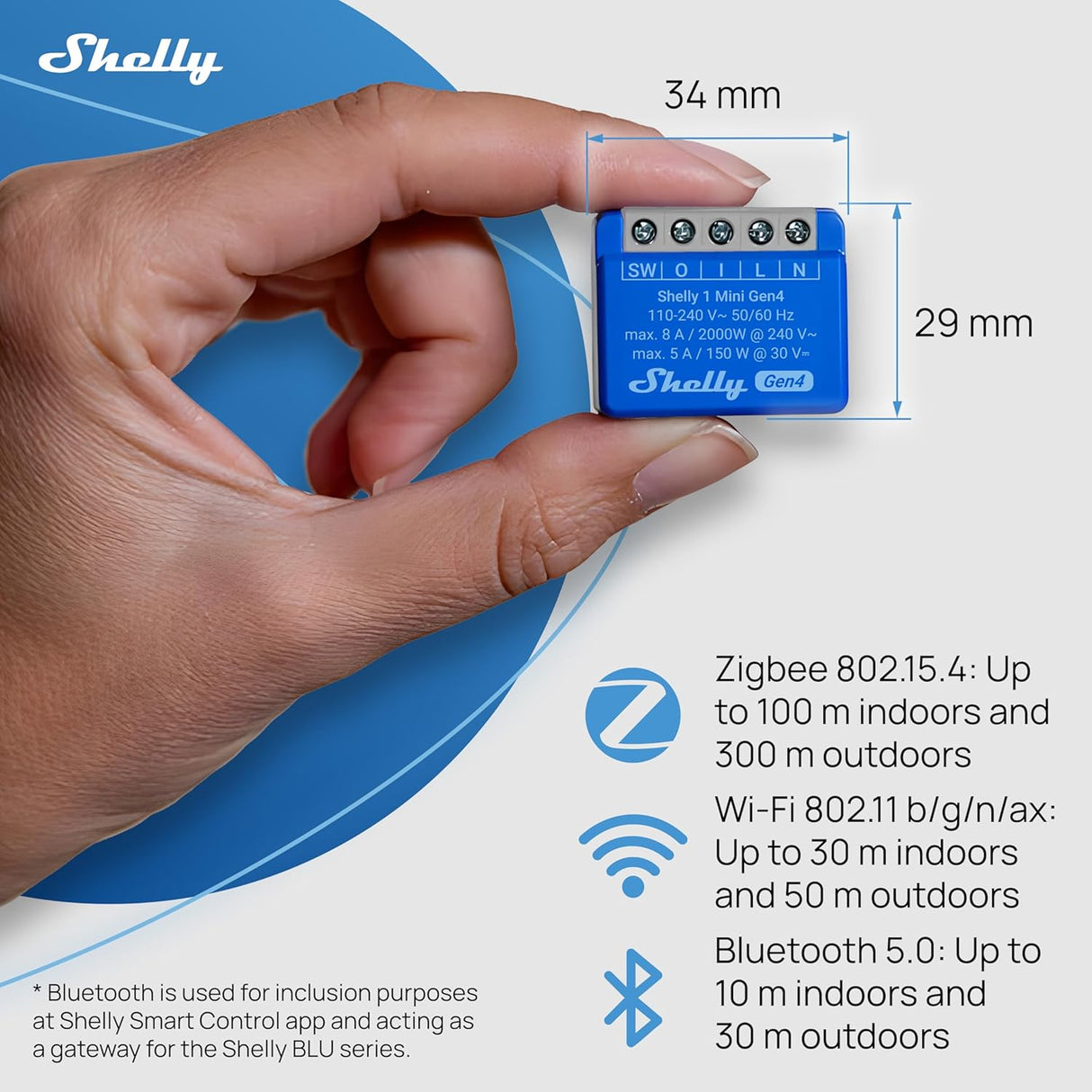

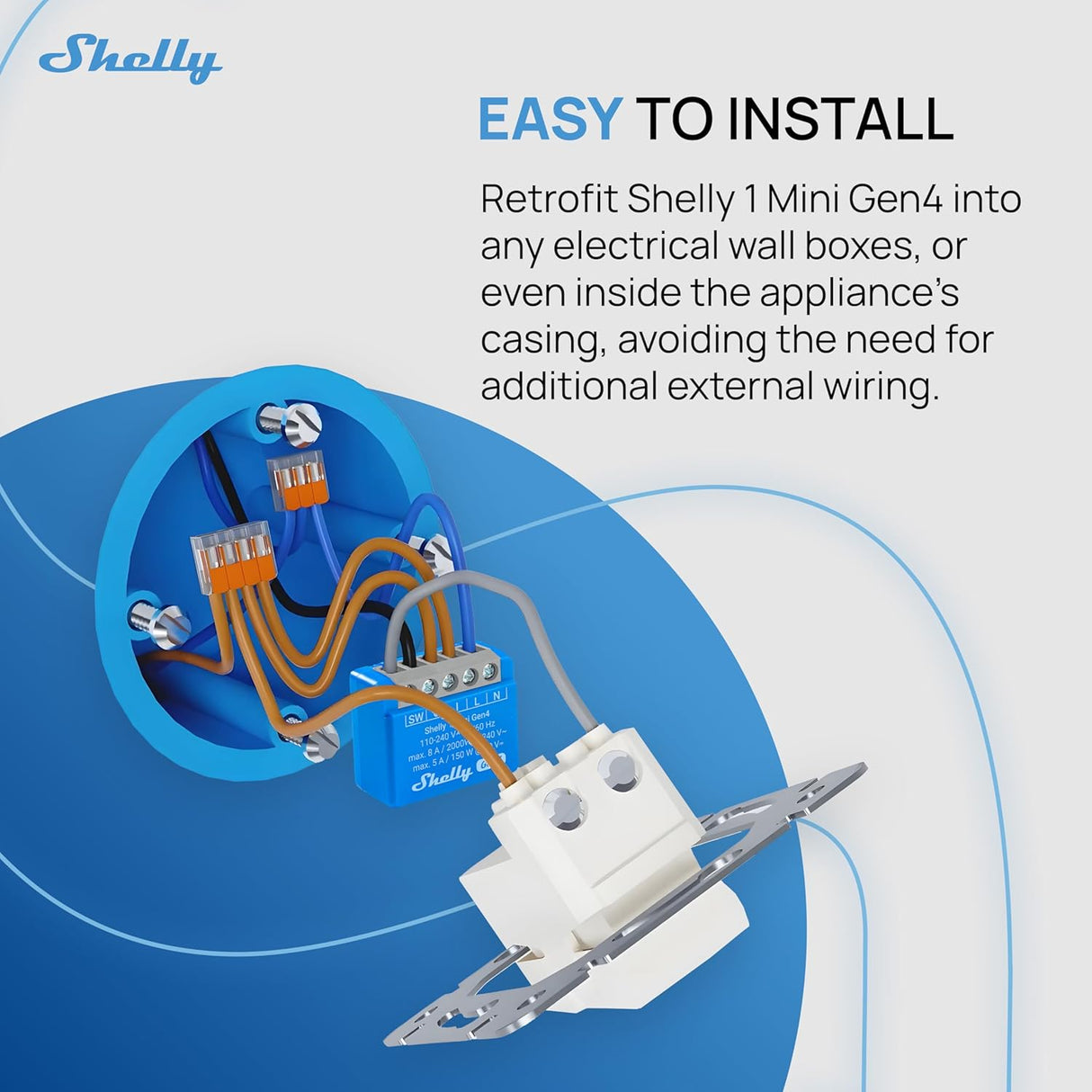

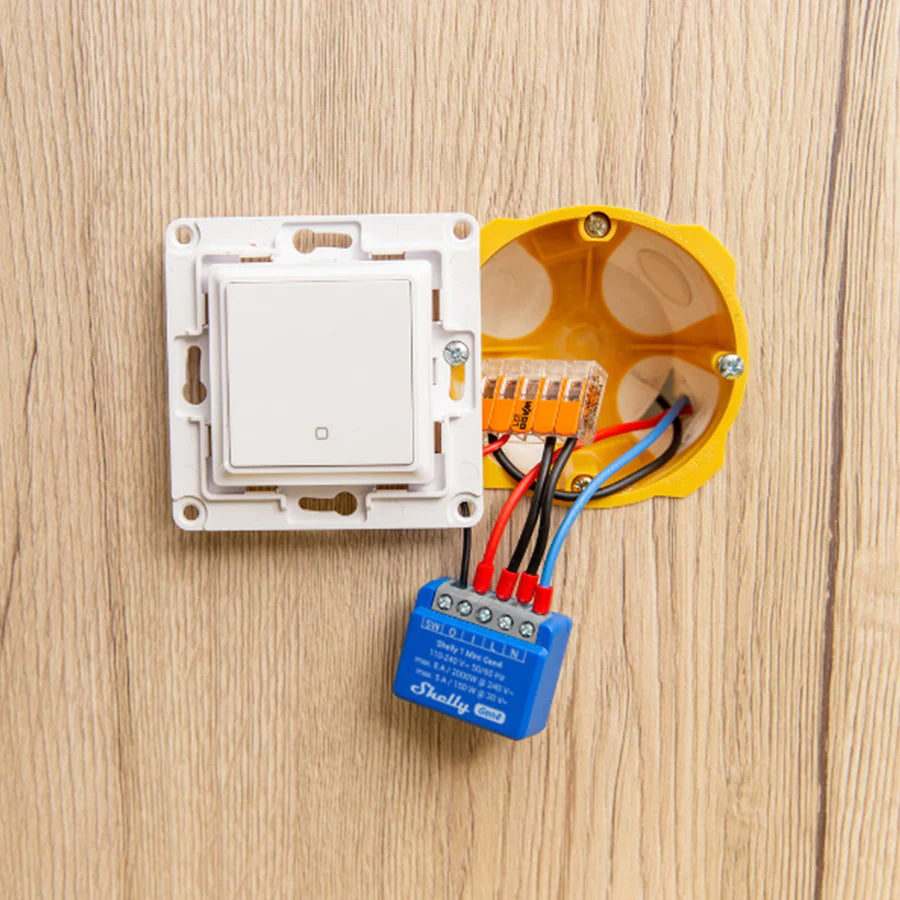

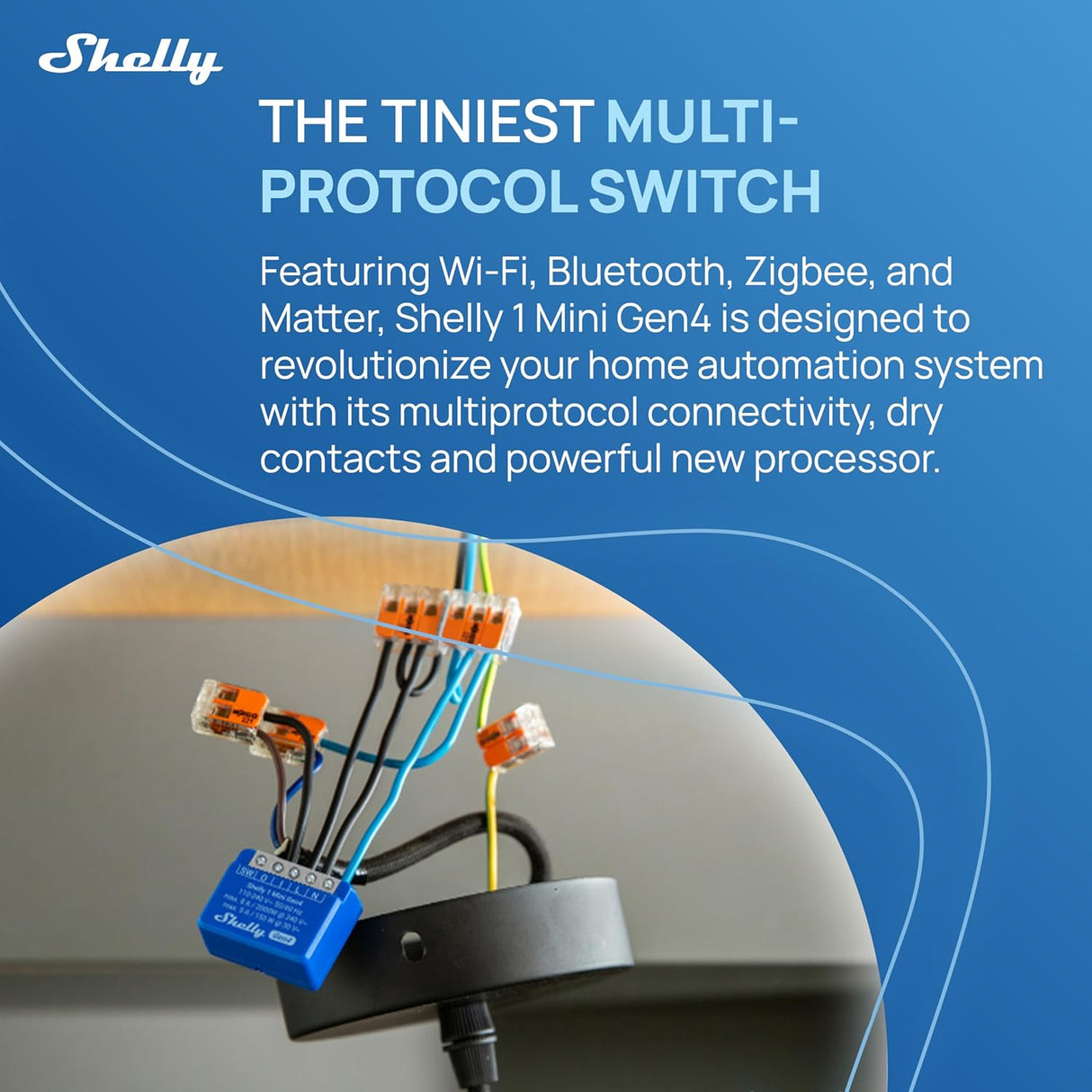

There is often little space behind wall switches. The Shelly 1 Mini Gen4 measures only 29 x 34 x 16 mm, making it suitable for almost any flush-mounted box. The device switches lighting or other electrical appliances up to 8A via a potential-free relay, and supports WiFi, Zigbee and Matter in one module.

Power supply and connectivity

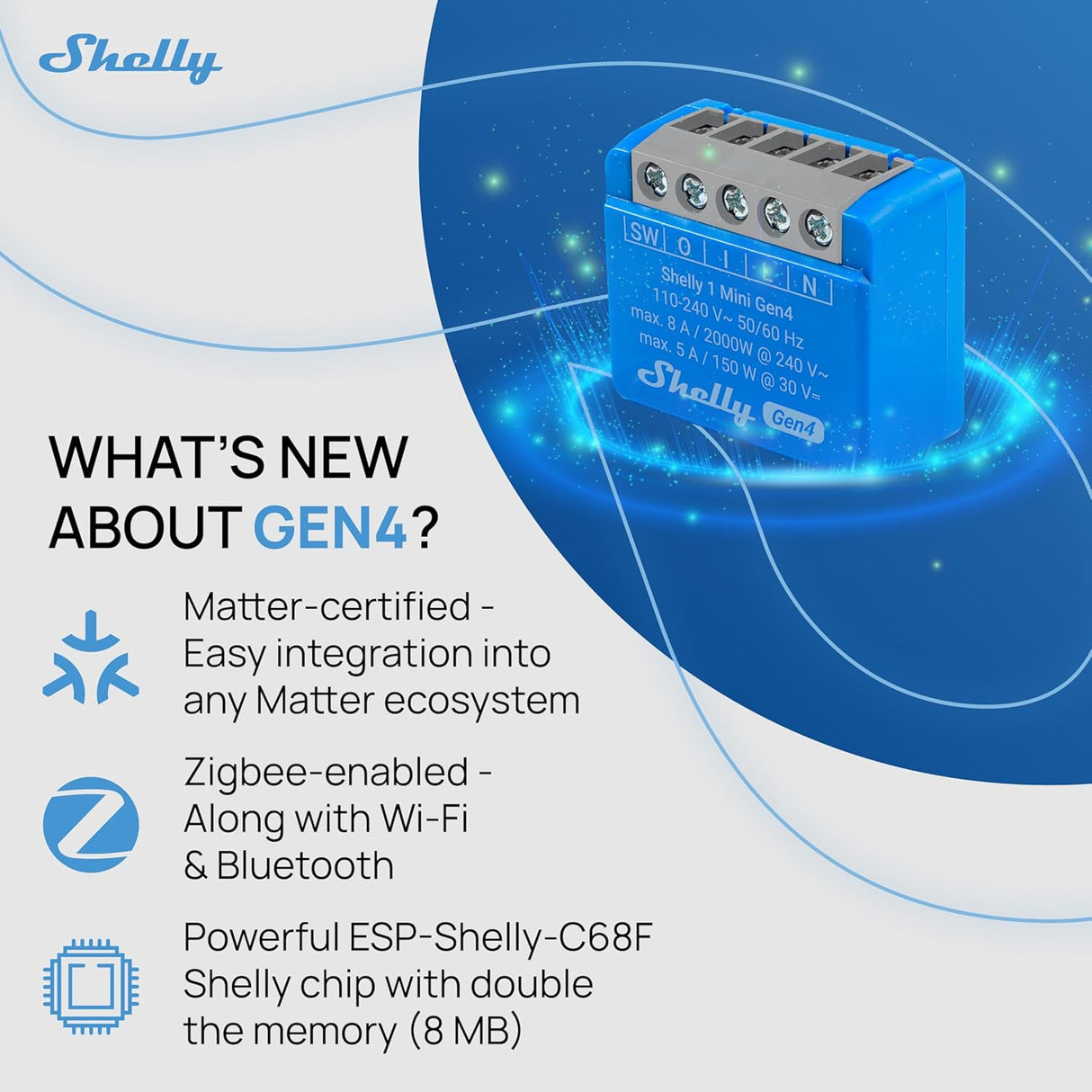

The module operates on 110-240V AC (50/60 Hz) and requires a neutral wire (blue N-wire). If this is missing behind your switch, the Shelly 1 Mini Gen4 is not suitable for that location. Wireless protocols: WiFi 802.11 b/g/n (2.4 GHz), Bluetooth 5.0 and Zigbee IEEE 802.15.4. Matter certification is present. The module also functions as a WiFi range extender and Bluetooth Gateway.

Functionality and settings

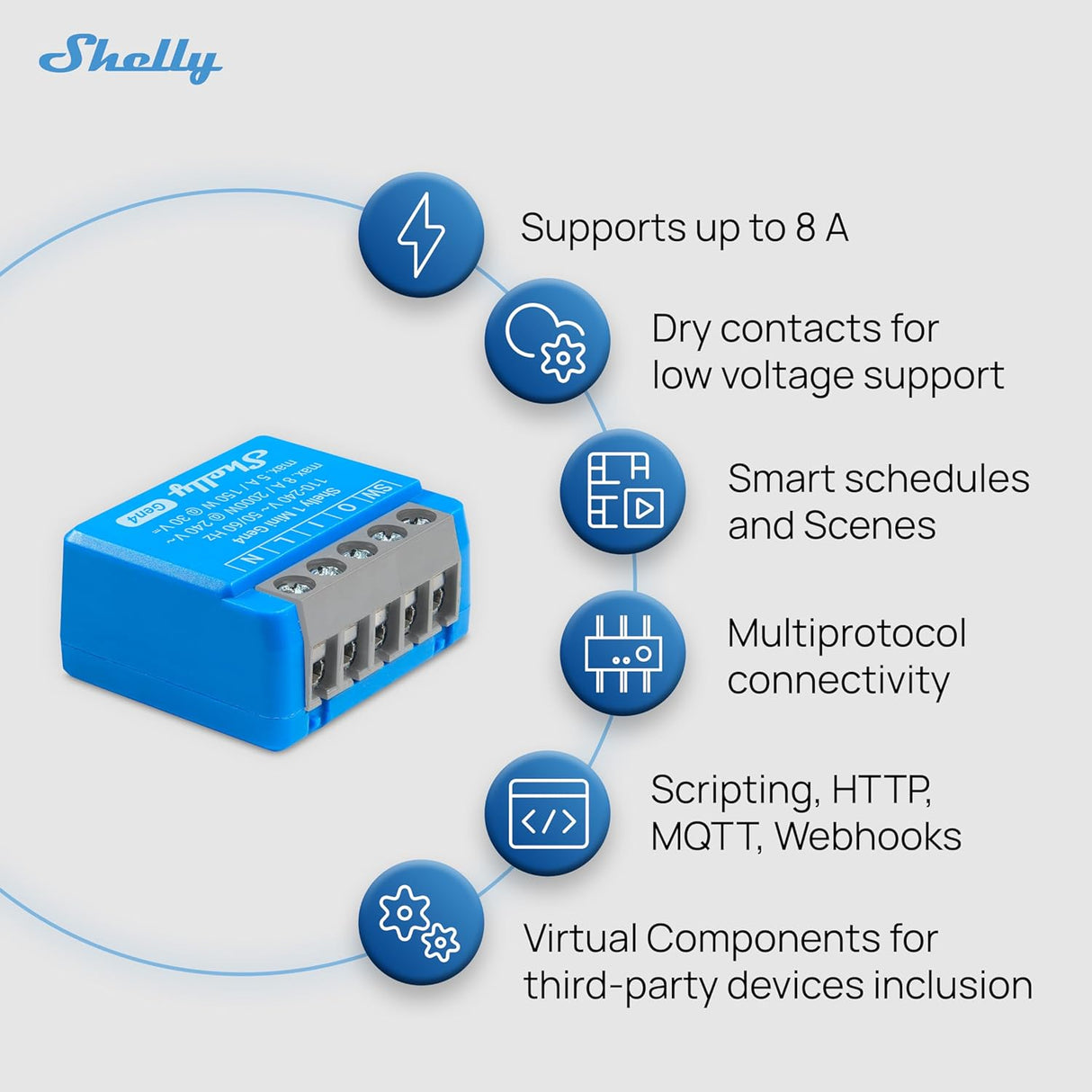

The device has one potential-free relay contact. There is no built-in power measurement; for consumption monitoring per switch, the Shelly 1PM Mini Gen4 is the right choice. The module supports 20 adjustable schedules, webhooks, scripting, MQTT and KNX net/IP. OTA firmware updates are done automatically via the Shelly Smart Control app or local web interface.

⚠️ Pay attention to inductive loads such as LED drivers and fans: the inrush current can damage the relay. Use an RC snubber to dampen this inrush current.

Expansion and accessories

The Shelly 1 Mini Gen4 combines well with a wireless switch for wall control without additional wiring. As a Zigbee repeater, the module directly increases the wireless range in the room where it is installed, provided it is connected to mains power.

Home Assistant

In the standard WiFi/Matter mode, you use the official Shelly integration in Home Assistant for local, cloud-independent control via the RPC protocol. In Zigbee mode, you pair the module via ZHA or Zigbee2MQTT, along with a Zigbee coordinator.

Pairing procedure (WiFi/Shelly integration)

1. Connect the module and wait for the LED to flash.
2. Connect your phone or PC to the WiFi access point Shelly1MiniG4-XXXXXXXXXXXX.
3. Set up your home network via the web interface or Shelly Smart Control app.
4. Home Assistant automatically detects the device (Settings > Devices & services).
5. Confirm the pairing and give the device a name.

Pairing procedure (Zigbee mode)

1. Open the Shelly Smart Control app and navigate to the device.
2. Switch to Zigbee firmware via Settings > Firmware mode.
3. Start pairing mode from the app or via the reset button (see included manual).
4. Open Zigbee2MQTT or ZHA and start adding a device.
5. The device will appear as Shelly 1 Mini Gen4.

Entities after pairing (WiFi integration)

• switch.shelly1minig4 (on/off)
• binary_sensor.shelly1minig4_input (switch input)
• sensor.shelly1minig4_temperature (internal)

Zigbee role: Router (repeater). Local control confirmed via WiFi (RPC) and Zigbee. Shelly Cloud is optional.

Homey

Pairing via the official Shelly app on Homey Pro (WiFi/local). Matter pairing available on Homey Pro. Homey Bridge may support more limited functionality.

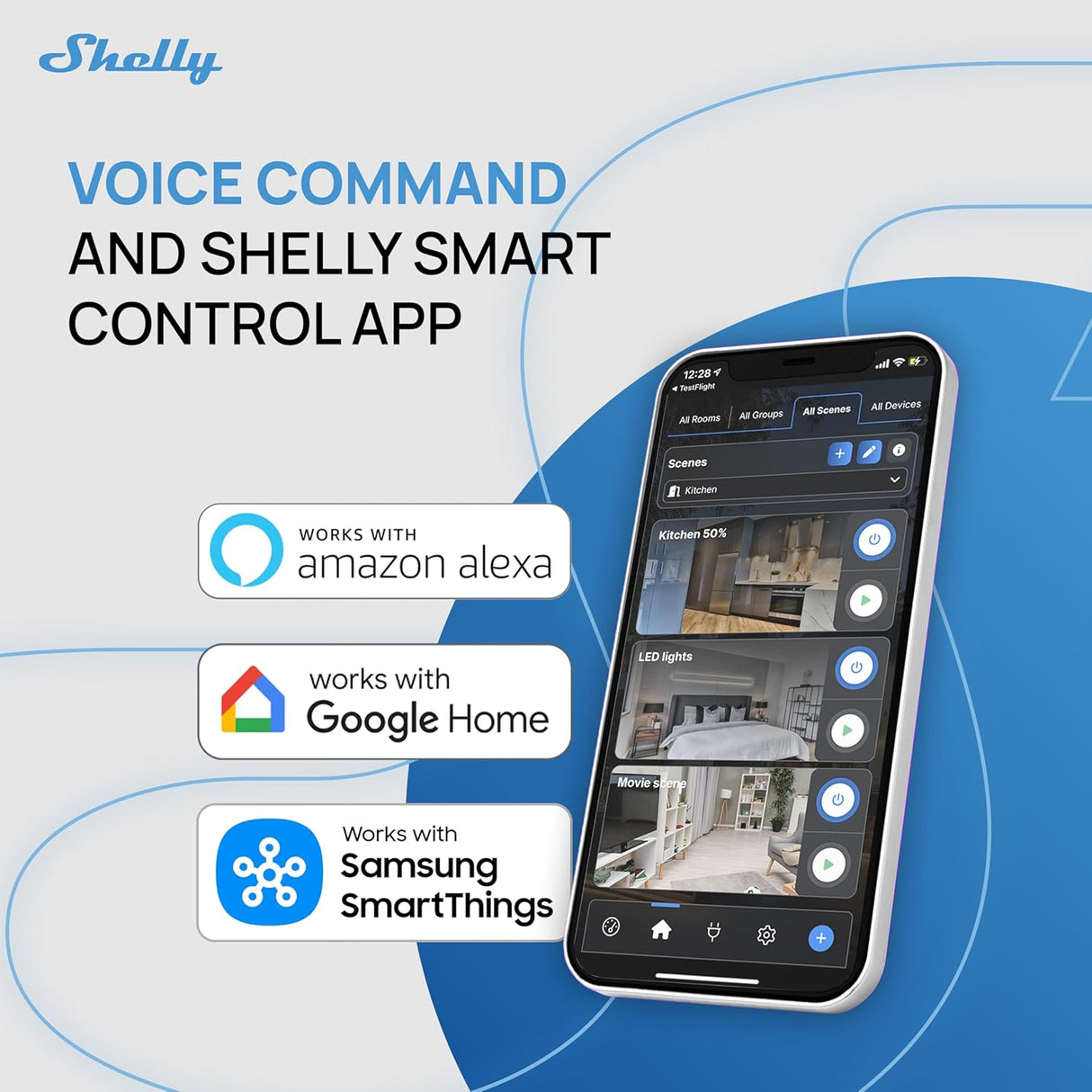

Other platforms

• Amazon Alexa: yes, via Shelly Cloud or Matter
• Google Home: yes, via Shelly Cloud or Matter
• Apple HomeKit: yes, via Matter (Matter-controller required)
• Samsung SmartThings: yes

Automation examples

Example 1 – Light off automatically after closing time

1. Trigger: time reached 11:30 PM.
2. Condition: switch.shelly1minig4 is on.
3. Action: turn off switch.shelly1minig4.
4. Optional: send notification via HA Companion app: “Outdoor light switched off”.

Example 2 – Hall light on with motion, off after 5 minutes

1. Trigger: motion sensor detects presence (binary_sensor.gang_motion becomes on).
2. Condition: time between 9:00 PM and 7:00 AM.
3. Action 1: turn on switch.shelly1minig4.
4. Action 2: wait 5 minutes.
5. Action 3: check if motion sensor is still active; if not, turn off light.

⚠️ Points of attention

• Requires a neutral wire (blue N-wire) behind the switch.
• No built-in power measurement; choose the Shelly 1PM Mini Gen4 for consumption data.
• Use an RC snubber with inductive loads such as LED drivers and fans.
• WiFi/Matter and Zigbee are not active simultaneously.
• Not suitable for outdoor use.
• Operating temperature: -20 °C to +40 °C.

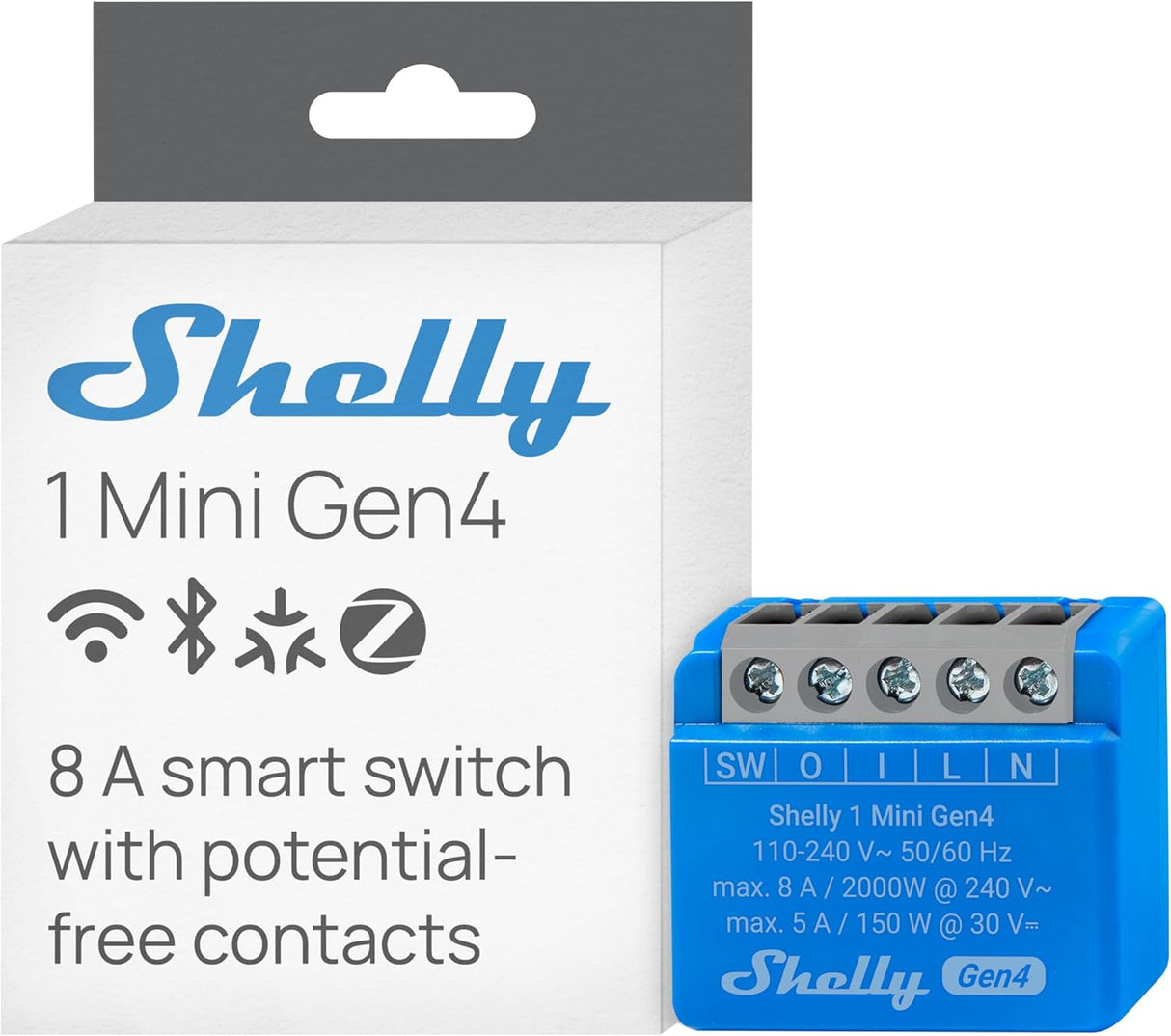

Box contents

• 1x Shelly 1 Mini Gen4 module
• 1x Multilingual user manual

Compatibility

Home Assistant (Shelly integration, ZHA, Zigbee2MQTT, Matter) | Homey Pro | Apple HomeKit (Matter) | Amazon Alexa | Google Home | Samsung SmartThings

Specifications

• Article number: S4SW-001X8EU
• EAN: 3800238070786
• Protocol: WiFi 802.11 b/g/n (2.4 GHz), Bluetooth 5.0, Zigbee IEEE 802.15.4, Matter
• Power supply AC: 110-240V~, 50/60 Hz (L + N required)
• Own consumption: 1.2 W
• Relay contacts: 1x potential-free
• Max. current: 8A
• Max. power: 1840W
• Maximum wire cross-section: 2.5 mm²
• Current measurement: no
• CPU: ESP-Shelly-C68F
• Flash: 8 MB
• Dimensions (L x W x H): 29 x 34 x 16 mm
• Weight: 50 g
• Color: blue
• Mounting: flush-mounted (flush-mounted box or DIN rail)
• Operating temperature: -20 °C to +40 °C
• Humidity: 30-70% RH
• Zigbee role: Router (repeater)
• OTA updates: yes
• Schedules: 20
• MQTT: yes
• KNX net/IP: yes
• Scripting: yes
• Box contents: 1x Shelly 1 Mini Gen4, user manual

FAQ

Do I need a hub to use the Shelly 1 Mini Gen4?

Via WiFi, the device works standalone on your local network and Home Assistant connects directly via the Shelly integration. For Zigbee, you need a Zigbee coordinator. For Matter, a Matter-compatible controller is required.

Is a neutral wire mandatory?

Yes. The Shelly 1 Mini Gen4 requires a neutral wire (blue N-wire) behind the switch. If this wire is missing in your installation, this device is not suitable. Check this in advance or consult an electrician.

How do I pair the module with Home Assistant?

In WiFi mode, Home Assistant automatically detects the device via the Shelly integration (Settings > Devices & services). In Zigbee mode, you first switch to Zigbee firmware via the Shelly Smart Control app, after which you pair via ZHA or Zigbee2MQTT.

Can I use WiFi and Zigbee simultaneously?

No. The module switches between Matter mode (with WiFi) and Zigbee mode via a firmware switch. Both are not active simultaneously. Choose the mode that suits your home automation infrastructure.

Does the Shelly 1 Mini Gen4 measure power consumption?

No. The 1 Mini Gen4 has no built-in energy measurement. If you want to track consumption per switch, choose the Shelly 1PM Mini Gen4, which does include power measurement.

Does the module work as a Zigbee repeater?

Yes. Because the module works continuously on mains power, it functions as a Router (repeater) in Zigbee mode and strengthens the range of other Zigbee end devices in your network.

Which loads are suitable?

The device switches up to 8A AC. For inductive loads such as LED drivers, motors and fans, an RC snubber is required to dampen the inrush current and protect the relay.

Ready for installation in an hour. Pair the Shelly 1 Mini Gen4 with Home Assistant and automate lighting and devices completely locally, without the cloud.
