Nous A1Z Zigbee Smart Plug with Energy Monitoring

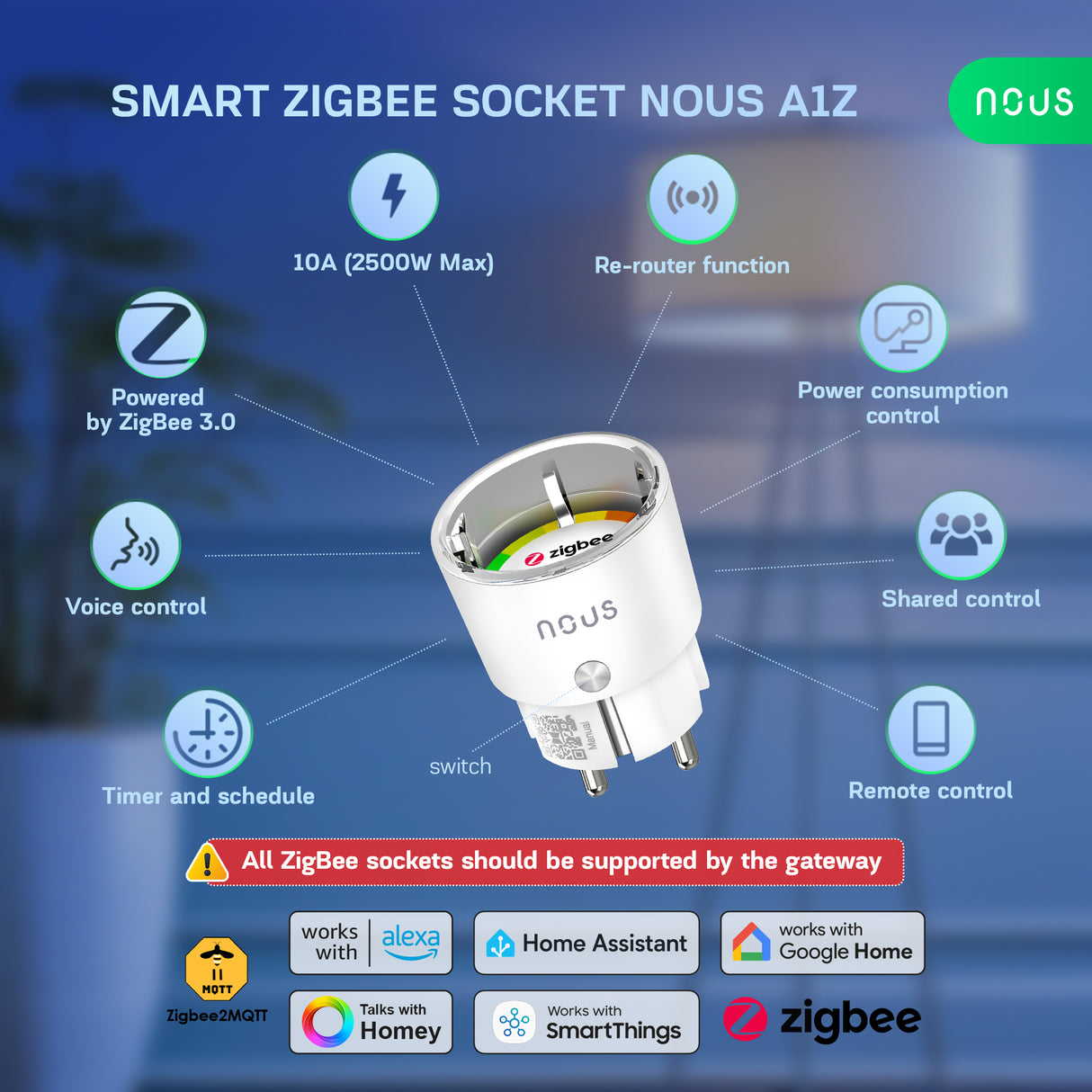

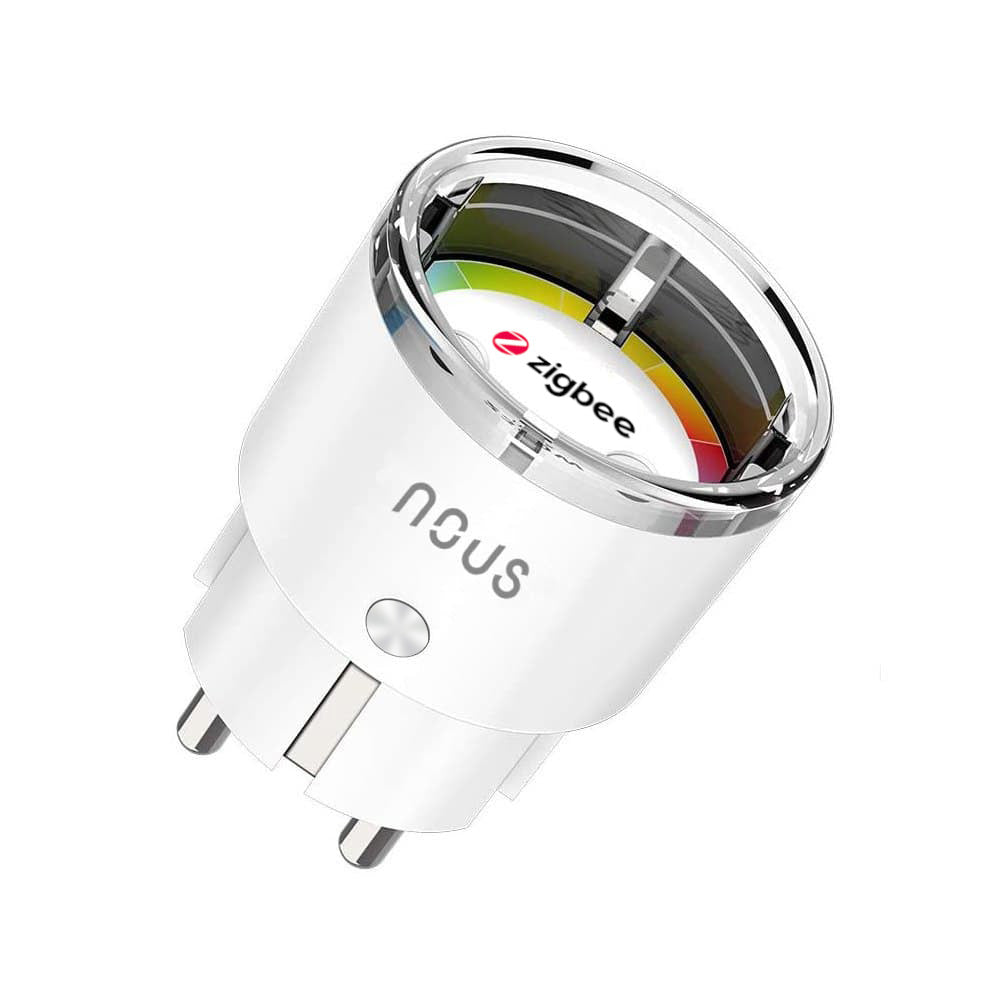

Want to know how much power a device consumes and switch it remotely from Home Assistant? The Nous A1Z combines these features in one compact Schuko plug. The A1Z measures power, voltage, and current in real-time, switches via Zigbee 3.0, and simultaneously acts as a Zigbee Router to strengthen your network. No neutral wire, no installation, no tools: just plug in and pair.

Power and Connectivity

The Nous A1Z operates on 230V AC via a Type F (Schuko) plug and consumes less than 0.5W in standby. Communication takes place via Zigbee 3.0; because the device is permanently powered, it also functions as a Zigbee Router and automatically strengthens your Zigbee network. You will need a Zigbee coordinator, a Tuya Zigbee gateway, or Homey to use the plug.

Energy Monitoring and Switching Function

The A1Z measures real-time power (watts), voltage (volts), and current (amperes). Via Zigbee2MQTT or ZHA, all measured values are available as separate entities in Home Assistant. The maximum load is 3680W with a peak current of 16A and a continuous load of up to 10A (2300W). A physical button on the device manually switches the connected device on or off, even if the Zigbee connection is lost.

Overload Protection

The A1Z has built-in overload protection. If the maximum load is exceeded, the plug automatically switches off to protect the connected device. Also, check out our other smart plugs for more options.

Home Assistant

The Nous A1Z works via Zigbee2MQTT and ZHA, completely locally without a cloud. The plug is widely supported in both platforms as a Tuya-compatible Zigbee device. Local control is confirmed; cloud is not required after pairing.

Pairing Procedure via Zigbee2MQTT

• Put Zigbee2MQTT in pairing mode via the interface or the HA dashboard.
• Plug the A1Z into the power socket.
• Press and hold the button on the plug for 5 seconds until the LED flashes rapidly.
• The device will automatically appear as Nous A1Z in Zigbee2MQTT.
• In HA, go to Settings > Devices & Services > MQTT; the plug will appear as a new device.

Entities after pairing via Zigbee2MQTT: switch (on/off), power (watts), voltage (volts), current (amperes), energy (kWh), linkquality. Local control confirmed, cloud not required.

Pairing Procedure via ZHA

• In HA, go to Settings > Devices & Services > ZHA > Add Device.
• Plug the A1Z into the power socket and hold the button for 5 seconds until the LED flashes.
• ZHA will recognize the device; all entities, including energy monitoring, will be immediately available.

Nous Smart Home App

Via the Nous Smart Home app and a compatible Tuya Zigbee gateway (e.g., Nous E1, E7, or E15), you can set up the plug and link it to automations. Add the device via the app and choose Smart Plugs > Nous A1Z. Alexa and Google Home can be linked via this app for voice control.

Homey

NOUS has an official app available for Homey via the Homey App Store (actively maintained). Check the app page for the current list of supported devices to confirm that the A1Z is listed. Alternatively, the A1Z works reliably locally via Zigbee2MQTT in combination with Home Assistant. View the Homey assortment for suitable hardware.

Other Platforms

Via the Nous Smart Home app, the plug can be linked to Alexa and Google Home for voice control. Apple Home is not directly supported; indirect linking via Home Assistant and Homebridge is possible.

Automation Examples

Example 1 – Turn off device at standby consumption

• Trigger: sensor.nous_a1z_power drops below 2W and has been at this level for more than 10 minutes.
• Condition: time is between 23:00 and 07:00.
• Action: turn off switch.nous_a1z and send push notification "Television turned off in standby."

Example 2 – Track and report daily energy consumption

• Use the Riemann Sum integration in HA to convert sensor.nous_a1z_power to kWh consumption per day.
• Trigger: time is 22:00.
• Action: send push notification with the daily consumption of the connected device in kWh.

Points of Attention

• A Zigbee coordinator, Tuya Zigbee gateway, or Homey is required; the plug does not work standalone.
• Maximum peak load is 3680W (16A); for continuous use, a maximum of 10A (2300W). Do not connect devices that exceed this.
• Only suitable for indoor use in dry locations.
• Type F (Schuko) plug; suitable for Dutch and Belgian sockets.

Box Contents

• 1x Nous A1Z Zigbee smart plug
• 1x user manual

Compatibility

Compatible with Zigbee2MQTT, ZHA, Nous Smart Home, Homey, Alexa, and Google Home. Works with all Zigbee 3.0 coordinators and Tuya Zigbee gateways, including the SMLIGHT SLZB series and other Zigbee USB controllers. View all smart plugs in our assortment.

Specifications

Frequently Asked Questions

Do I need a Zigbee hub for the Nous A1Z?

Yes, the A1Z does not work standalone. You need a Zigbee coordinator (such as the SMLIGHT SLZB series in combination with Zigbee2MQTT or ZHA), a Tuya Zigbee gateway for use via the Nous Smart Home app, or Homey for use via the official Nous Homey app.

What measured values are available in Home Assistant?

Via Zigbee2MQTT and ZHA, real-time power (watts), voltage (volts), current (amperes), and cumulative energy consumption (kWh) are available as separate entities. Use the Riemann Sum integration in HA to track daily, weekly, or monthly consumption.

Does the physical button work even if the Zigbee connection is lost?

Yes, the physical button on the A1Z always manually switches the connected device on or off, regardless of the Zigbee connection. This also makes the plug usable as a regular switched plug in case of a network outage.

Can I use the A1Z for heavy appliances such as a washing machine?

The maximum peak load is 3680W (16A), but for continuous use, a maximum of 10A (2300W) applies. An average washing machine consumes 1500-2500W; always check the maximum continuous power on the device's nameplate before connecting it.

Does the A1Z work with Homey?

NOUS has an official Homey app available via the Homey App Store. Check the app page for the current list of supported devices. Alternatively, the A1Z works reliably locally via Zigbee2MQTT in combination with Home Assistant.

Does the A1Z strengthen my Zigbee network?

Yes, because the A1Z is permanently powered by mains electricity, it automatically functions as a Zigbee Router. Other nearby Zigbee devices can communicate with the coordinator via the plug, increasing the range and reliability of your network. Check out our Zigbee USB controllers for the corresponding coordinator.
