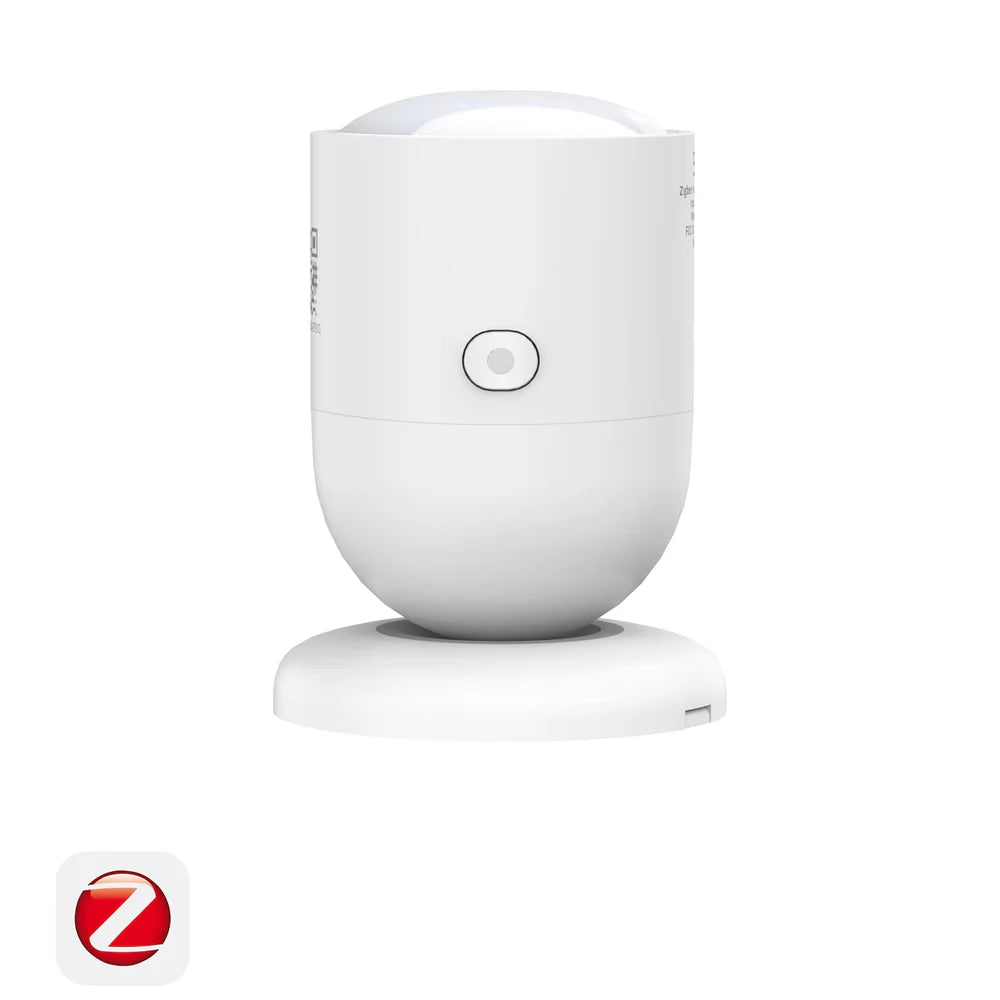

SONOFF SNZB-06P24 SenseGuard 24GHz Zigbee mmWave Presence Sensor

SONOFF SNZB-06P24 SenseGuard Presence Core 24GHz Zigbee Presence Sensor

Accurate Detection Without Missed Moments

Ordinary PIR motion sensors often miss a person working at a desk or reading on the couch because there is too little movement to detect. The SNZB-06P24 solves this with a 24GHz mmWave radar that also registers micro-movements such as hand gestures or chest movement during breathing, making presence detection much more stable.

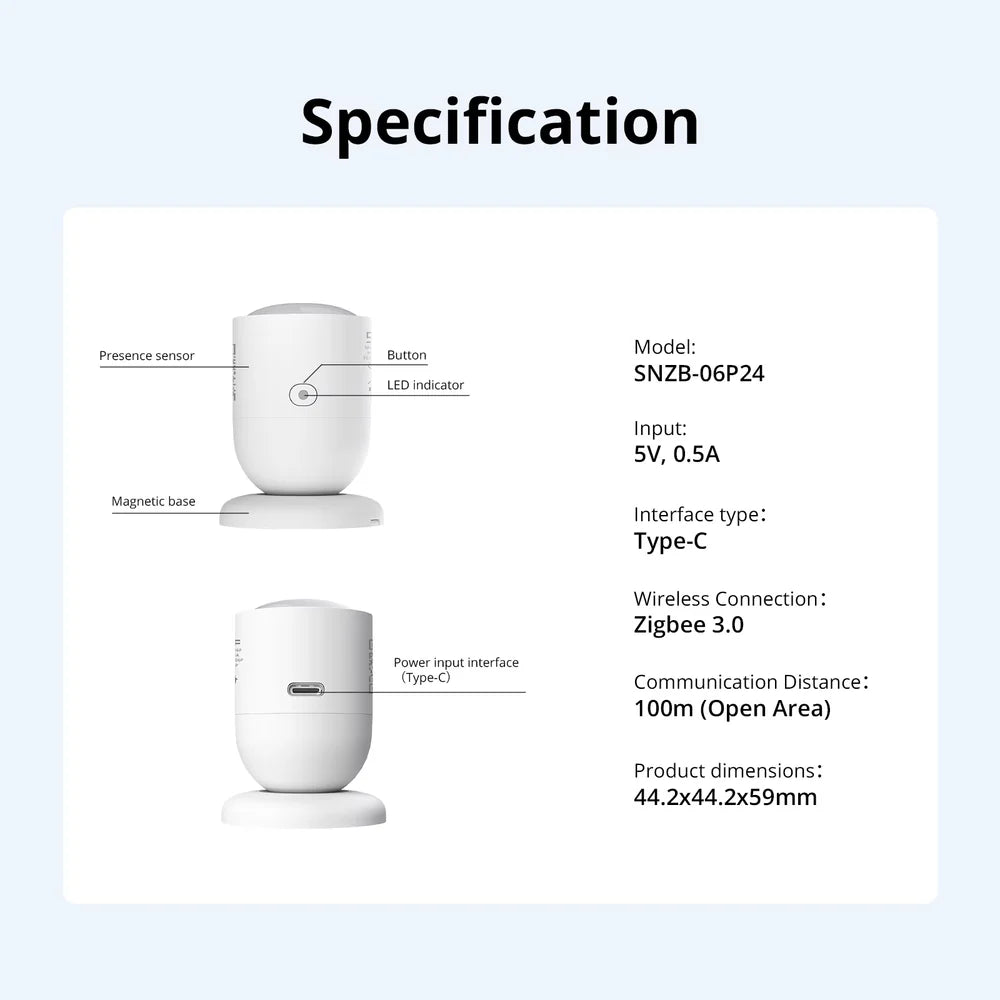

Power and Connectivity

The sensor communicates via Zigbee 3.0 (IEEE 802.15.4) and therefore requires a compatible Zigbee coordinator or hub to function. Power is supplied via USB-C, 5V/0.5A; no batteries are required or included.

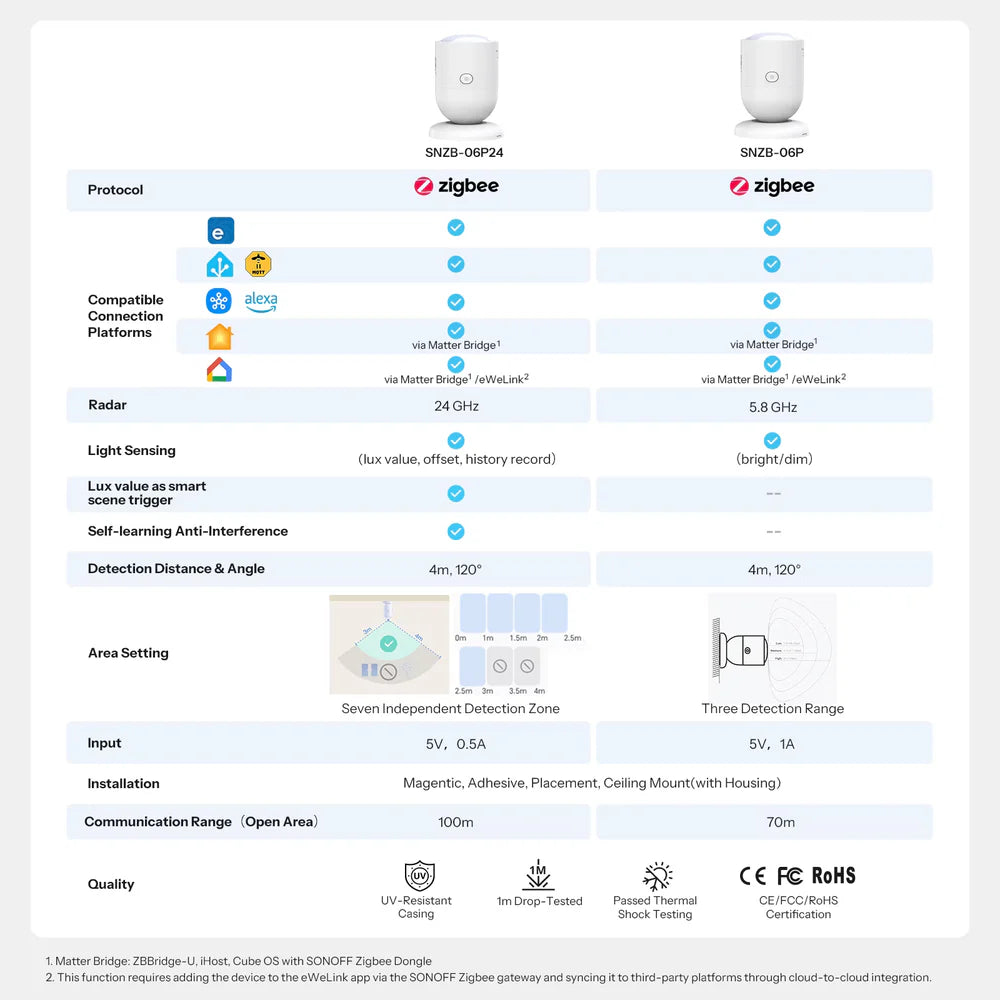

Functionality and Settings

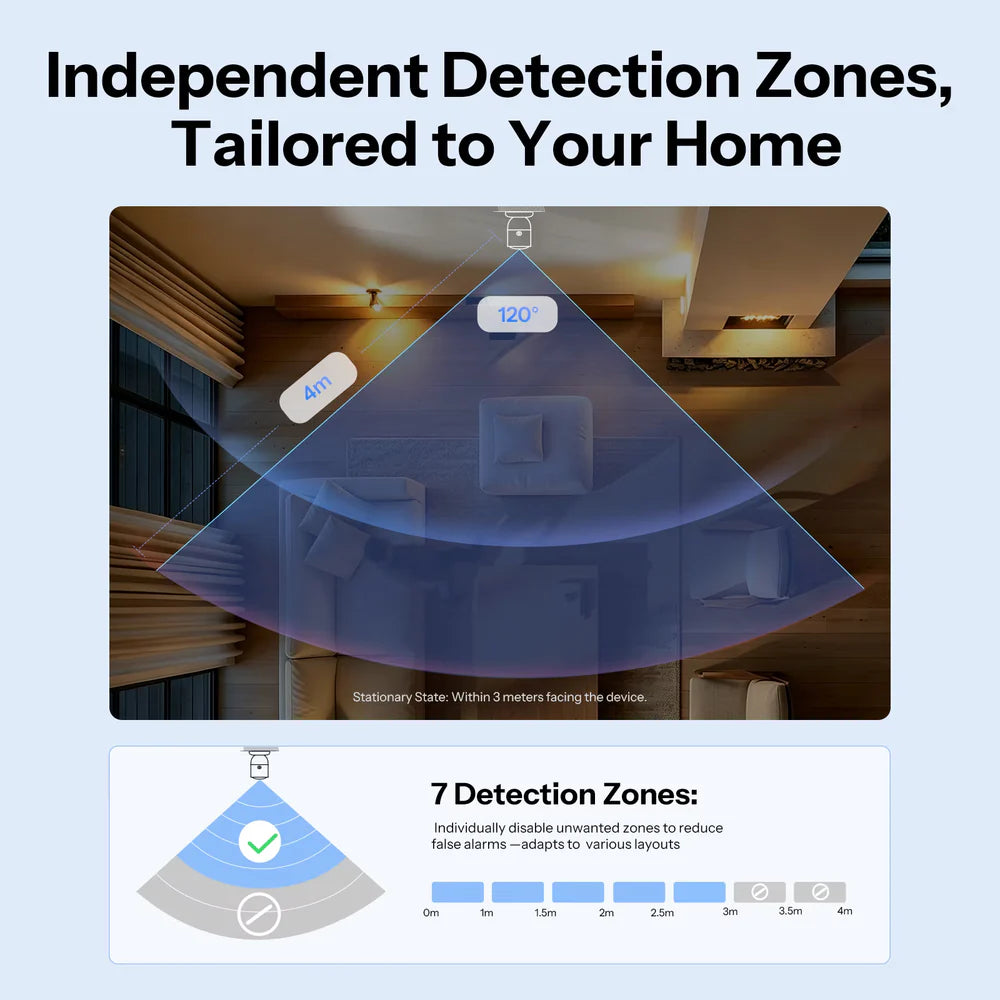

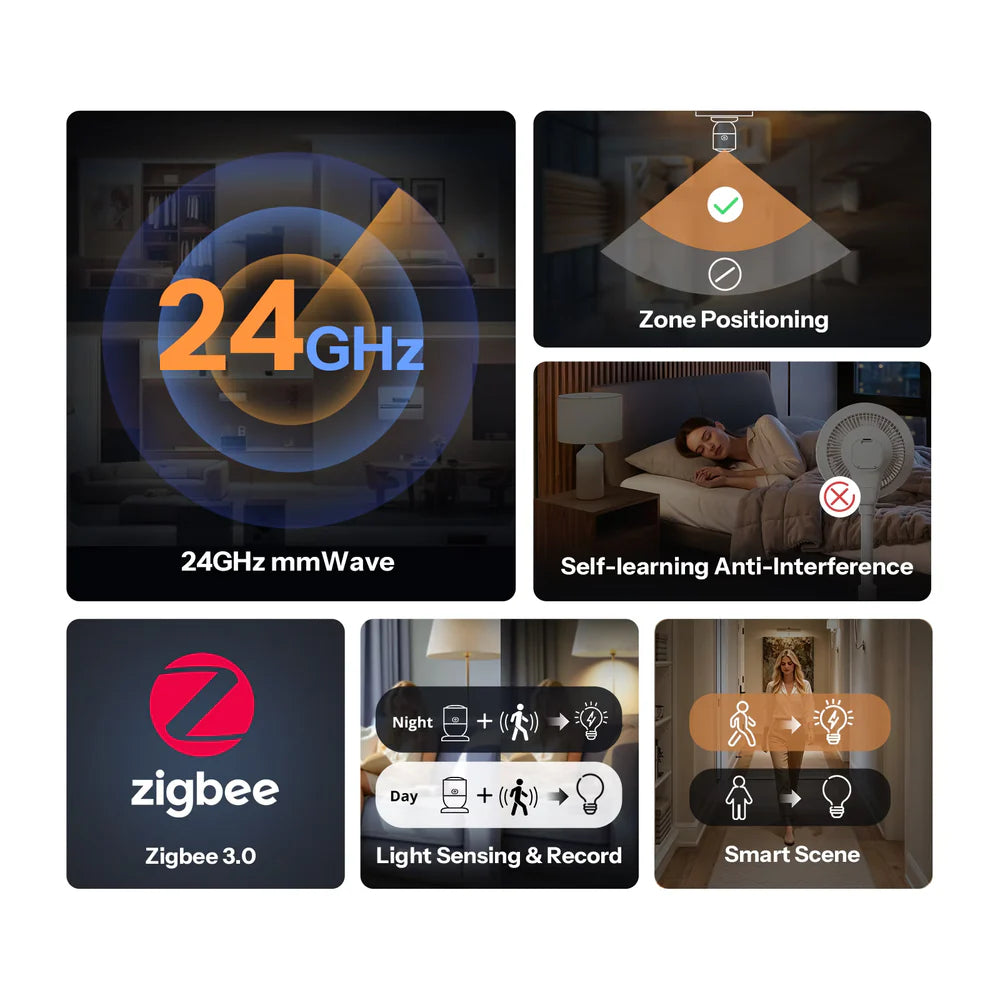

• Detection range up to 4 meters with a 120-degree field of view
• Reliable detection of a stationary person up to 3 meters directly in front of the sensor
• 7 independently adjustable zones in 0.5-meter increments

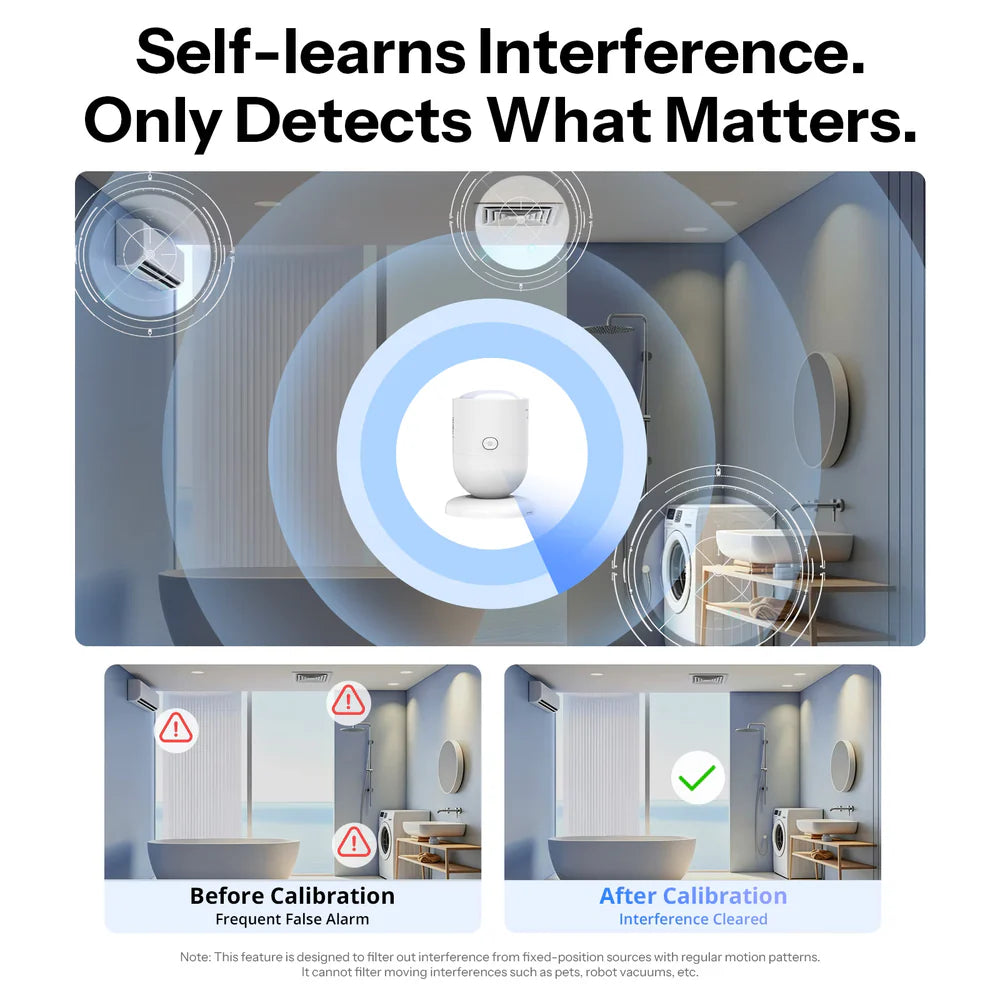

• Self-learning noise filtering (Detection Calibration) against fixed interference sources
• Built-in light sensor with lux value, calibration, and measurement history
• Communication range up to 100 meters in open field

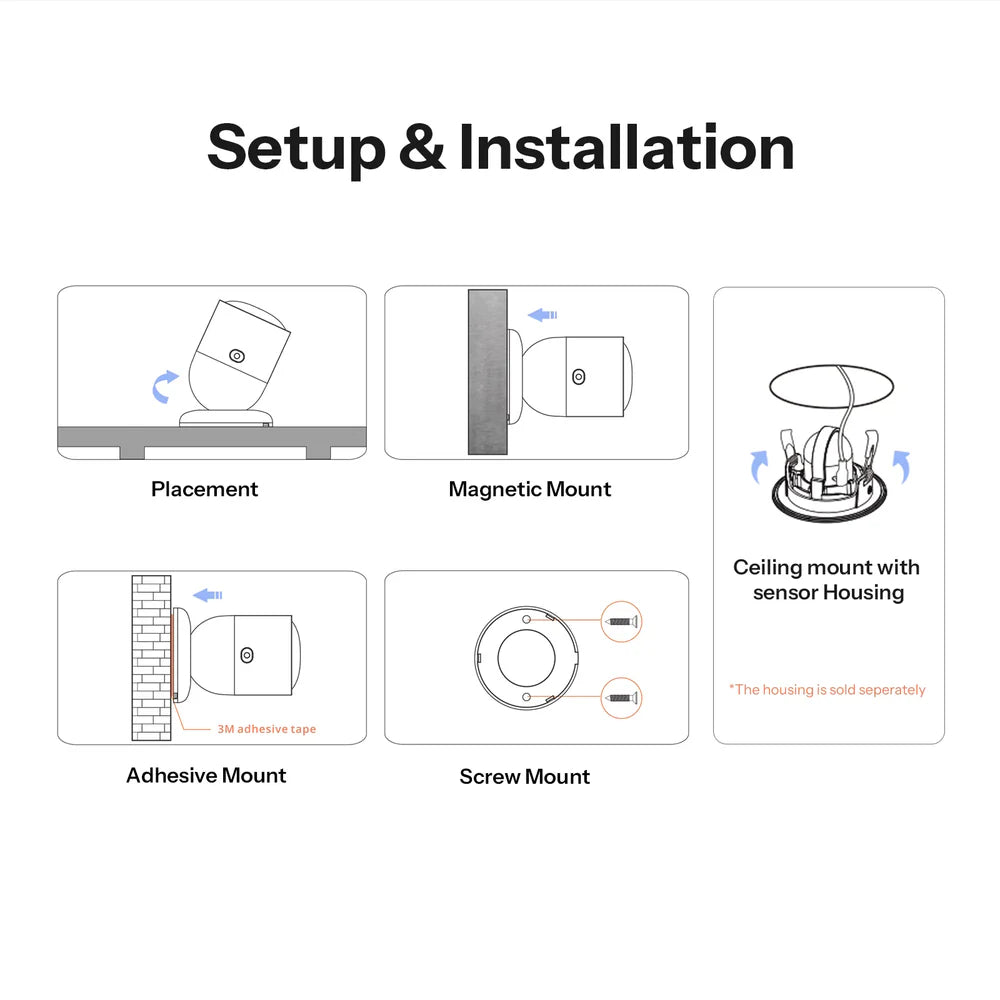

Expansion and Accessories

A Zigbee coordinator is required for use; a suitable USB Zigbee controller can be found in our product range. For ceiling mounting, a separate cover is needed which is not included as standard. Also check out the broader range of sensors and specifically light sensors to complement your setup.

Safety and Reliability

The sensor cannot reliably detect a sleeping person because chest movement during sleep is too subtle for the radar. The self-learning noise filtering reduces false triggers from fixed interference sources but does not protect against moving disturbances such as wandering pets or robot vacuum cleaners. The device is intended for indoor use only, with an operating temperature of -10 °C to 60 °C and a humidity of 0 to 90% RH non-condensing.

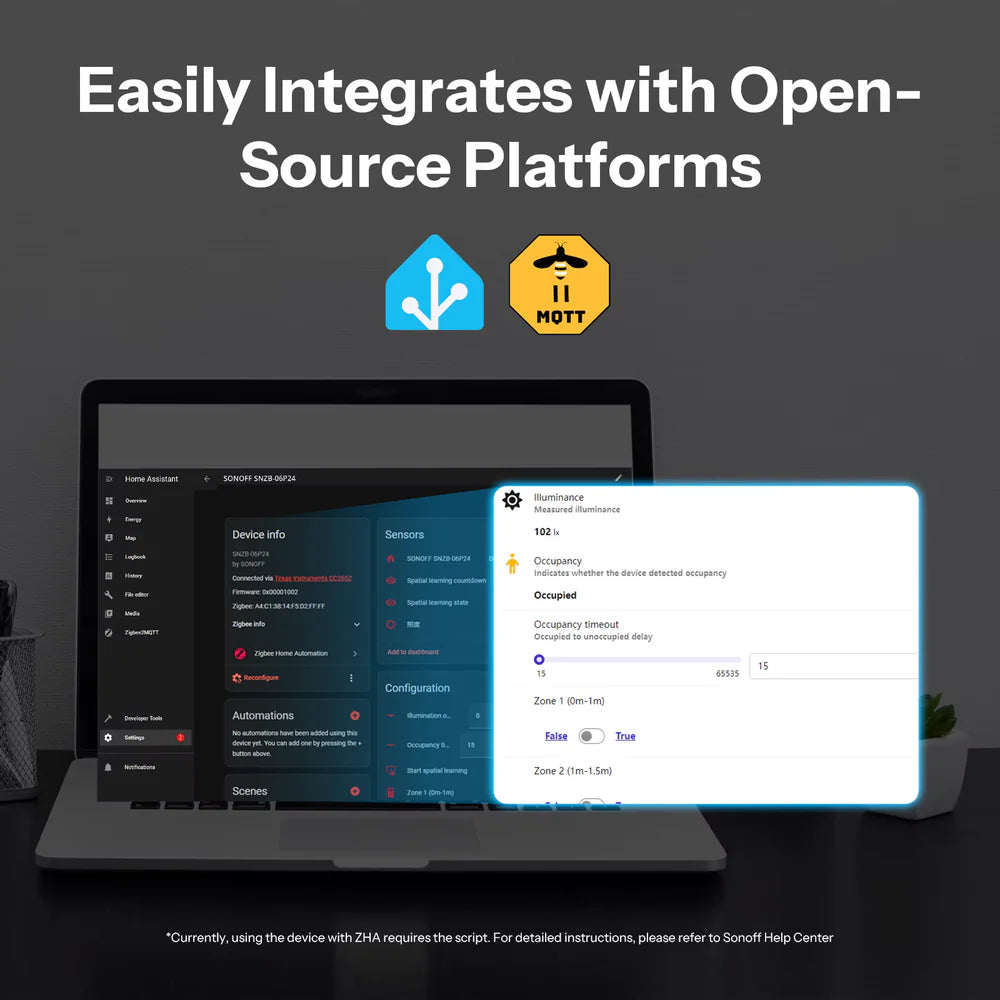

Home Assistant

The SNZB-06P24 can be integrated into Home Assistant via both ZHA and Zigbee2MQTT. Due to its fixed USB-C power supply, the device acts as a Router in the Zigbee network. Pairing proceeds as follows: put the coordinator in pairing mode in Home Assistant, press and hold the button on the sensor for approximately 5 seconds until the LED flashes, and wait for the device to appear in the interface. After pairing, entities for presence (occupancy), illuminance, and, depending on the quirk used, per-zone status will appear. Local control without the cloud is confirmed via ZHA and Zigbee2MQTT; the manufacturer's eWeLink app works via the cloud but is not necessary for HA users.

Homey

For use with Homey, a Homey Pro is required, as only this has a built-in Zigbee radio; the regular Homey Bridge does not directly support Zigbee devices. Pairing is done via a community app for SONOFF Zigbee devices in the Homey app store. Advanced features such as the 7 separate detection zones and detailed light sensor calibration may not be fully available in Homey, unlike Home Assistant.

Other Platforms

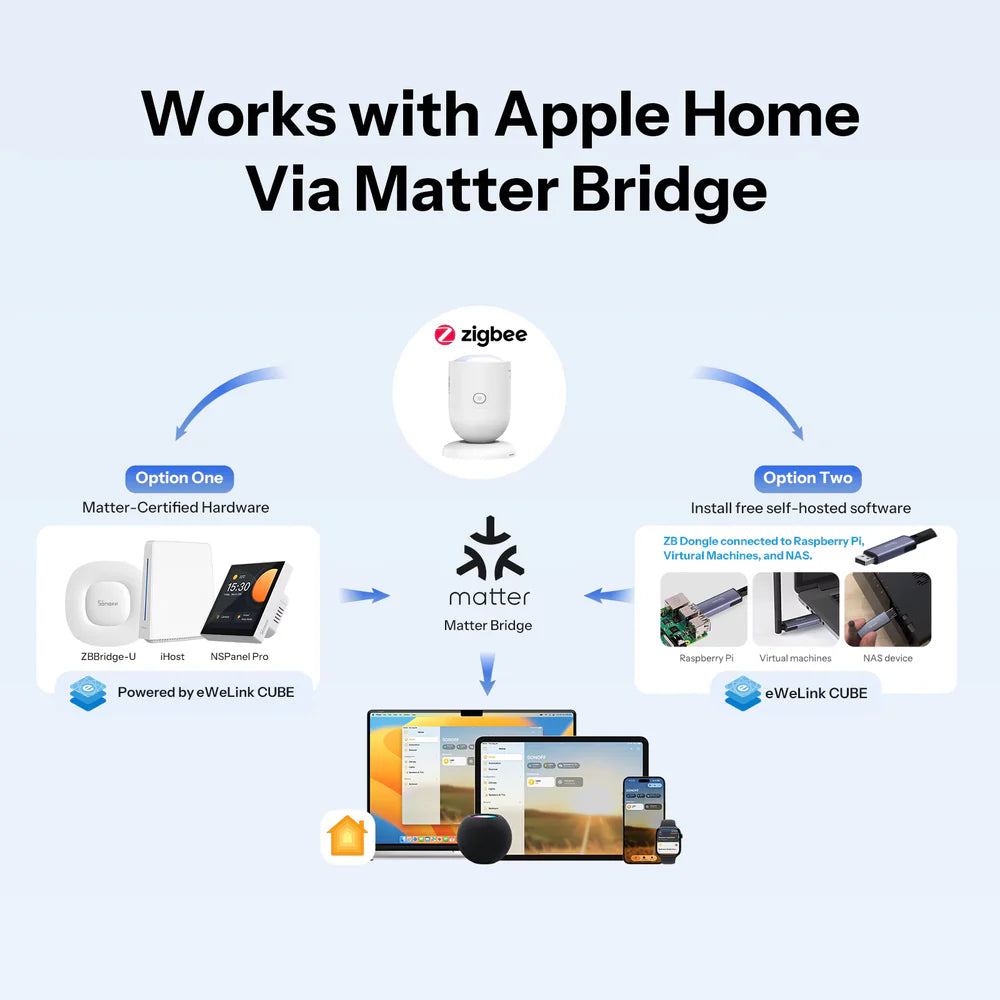

Via the eWeLink app and associated cloud connection, the sensor can also be used with Amazon Alexa, Google Home, and SmartThings for voice status and simple automations. For Apple Home, a Matter Bridge is required, for example, a ZBBridge-U or iHost with a SONOFF Zigbee dongle, which exposes the device via Matter.

Automation Examples

• Everyday: if the sensor detects presence and the measured illuminance drops below 50 lux, turn on the desk lamp; turn it off automatically after 5 minutes of no presence reported.
• Advanced: if presence remains active for 120 minutes uninterrupted in the study room & the time is between 09:00 and 18:00, send a push notification "time for a break" to your phone via the Home Assistant app.

Points of Attention

• Requires a separate Zigbee coordinator or hub, not included
• Does not reliably detect sleeping persons
• Ceiling mount cover is not included as standard
• Suitable for indoor use only
• Does not filter moving interference sources such as pets

Box Contents

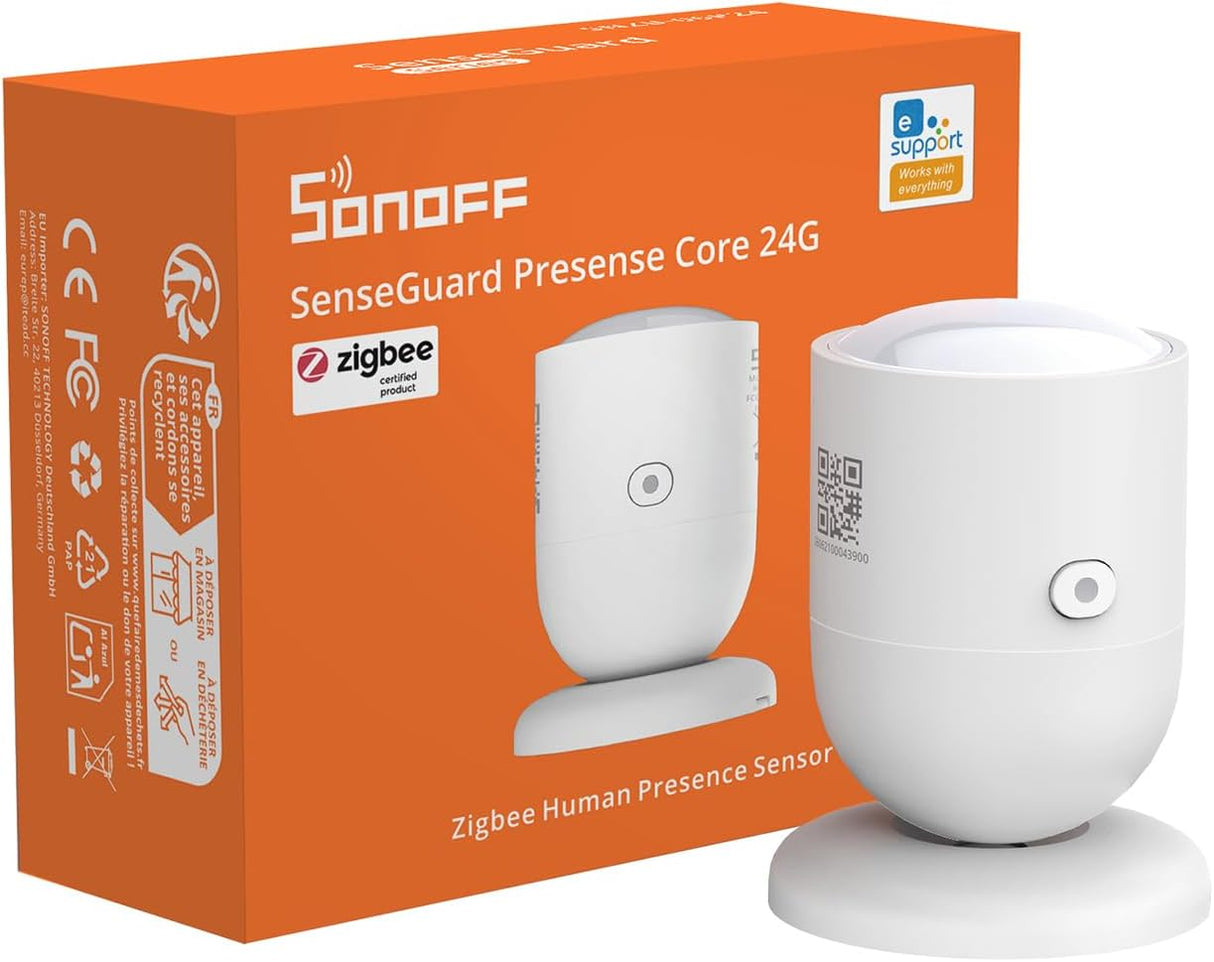

• 1x SONOFF SNZB-06P24 presence sensor
• 1x magnetic base
• 1x USB-C power cable
• Mounting materials (adhesive strip, screws, and plugs)
• 1x installation manual

Compatibility

Compatible with Home Assistant (ZHA and Zigbee2MQTT), Homey Pro, eWeLink, SmartThings, Amazon Alexa, Google Home, and Apple Home via a Matter Bridge.

Frequently Asked Questions

Does the SNZB-06P24 need a Zigbee hub?

Yes. A compatible Zigbee coordinator or hub, such as a Zigbee controller, is required for pairing, automations, and app control.

Does this sensor work with Home Assistant?

Yes, the sensor can be integrated via ZHA and Zigbee2MQTT in Home Assistant, with local entities for presence and illuminance, without cloud dependency.

Are batteries included?

No, the sensor operates exclusively on mains power via the included USB-C cable; no batteries are required.

Can I expand the sensor with a ceiling cover?

A separate ceiling cover is available for ceiling mounting; it is not included as standard with the sensor.

Is the SNZB-06P24 compatible with Homey?

Yes, provided you use a Homey Pro with a built-in Zigbee radio and a community app for SONOFF devices; not all advanced features are available here.

Does the sensor detect a sleeping person in bed?

No, chest movement during sleep is too subtle for the radar to reliably detect; for getting up and movement near the bed, the sensor works well.

Can the sensor filter out interference from pets?

The self-learning calibration filters fixed interference sources such as air conditioners, but moving objects like pets are not automatically excluded; for this, you can disable individual detection zones.
