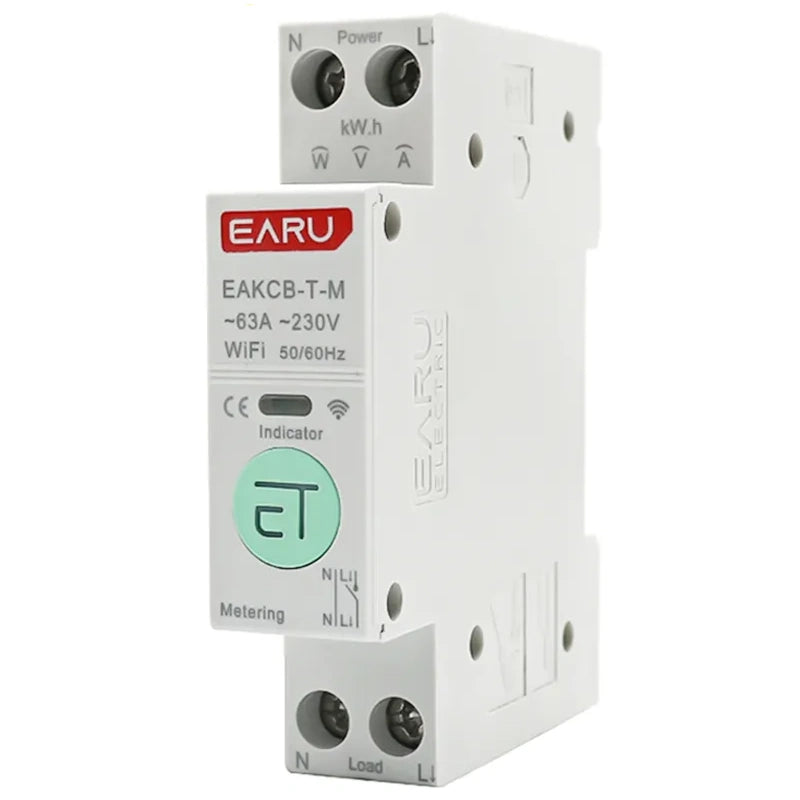

EARU WiFi DIN Rail Relay 63A – Tuya Switch with Energy Metering

Smart Switching via WiFi – Up to 63A ⚡

The EARU Electric EAKCB-TM is a compact, smart DIN-rail switch that remotely controls loads up to 63A via your existing Wi-Fi network. From electric boilers and charging stations to air conditioning units and heavy-duty heating systems, switch, monitor, and secure them directly from the Tuya Smart or Smart Life apps , or via voice control with Amazon Alexa and Google Assistant.

In addition to switching, the EAKCB-TM offers comprehensive real-time energy measurement : current, voltage, power, and kWh consumption are continuously visible in the app. Five adjustable safety thresholds automatically protect your system in the event of overcurrent, overvoltage, undervoltage, overload, and overheating.

💡 Compare it to the MOES A5? The EARU EAKCB-TM works over Wi-Fi (Tuya) and doesn't require a Zigbee coordinator. The MOES A5 works over Zigbee and fully integrates locally with Home Assistant via Zigbee2MQTT. Choose Wi-Fi for easy app control without a hub; choose Zigbee for maximum local control.

✅ Key Features & Benefits

• 63A suitable – Switches heavy loads such as boilers, charging stations, air conditioners and electric heaters
• Real-time energy measurement – ​​Continuous insight into current (A), voltage (V), power (W) and total consumption (kWh)
• 5 adjustable protection thresholds – Automatic shutdown for overcurrent, overvoltage, undervoltage, overload and overheating
• WiFi 2.4GHz (Tuya) – No additional hub or coordinator needed; works directly through your home network
• Timer & Schedules – Adjustable on/off times, countdown timers, and repeating schedules
• Voice Control – Fully compatible with Amazon Alexa and Google Assistant
• Power failure memory – Remembers the last setting after power recovery (adjustable)
• 1P+N design – Switches only the phase wire (L); neutral wire runs continuously
• CE certified – Approved for use in Europe
• DIN Rail Mounting – Fits standard 35mm DIN rail
• 100,000+ switching cycles – Long mechanical lifespan
• Local physical switch – Manually operable without app or internet

🔌 Compatibility

⚠️ Home Assistant users: The EAKCB-TM works via the LocalTuya integration and requires some technical configuration. Want a completely local, cloud-free solution? Then consider the MOES A5 (Zigbee) .

🏠 Practical Example: Smart Charging Station Control

1. The EAKCB-TM is installed on the charging station group in the meter cupboard.
2. In the Tuya Smart app, you can set a daily schedule: turn on at 11 PM, turn off at 7 AM.
3. A current limit of 32A is set – automatic shutdown if exceeded.
4. Monitor your exact charging consumption per session and month via the energy dashboard in the app.
5. In case of abnormal temperature, the device switches off automatically and you will receive a notification on your smartphone.

🔧 Adjustable Security Thresholds

🔄 EARU EAKCB-TM vs. MOES A5 – WiFi or Zigbee?

⚙️ Technical Specifications

⚠️ Points of attention

• No short-circuit protection – Always combine with a traditional fuse or circuit breaker for short-circuit protection
• Phase wire only (L) – The neutral wire (N) runs continuously
• WiFi 2.4GHz only – 5GHz networks are not supported
• Installation by electrician recommended – Due to the high power (up to 63A)
• Home Assistant via LocalTuya – Requires technical configuration; for easier integration: choose the MOES A5 (Zigbee)
• IP20 – Only suitable for closed meter cupboard or installation housing

❓ Frequently Asked Questions (FAQ)

Is the EAKCB-TM a real circuit breaker?

No. It's a smart relay with safety features, but without thermal or magnetic short-circuit protection. Always combine it with a traditional fuse for short-circuit protection.

Do I need a hub or additional device?

No. The EAKCB-TM connects directly via your existing Wi-Fi network (2.4GHz) and the free Tuya Smart or Smart Life app. No Zigbee coordinator or additional hub required.

Does the EAKCB-TM work with Home Assistant?

Yes, via the LocalTuya integration. This requires some technical configuration. For a fully local and simpler Home Assistant integration without the cloud, check out the MOES A5 (Zigbee) .

What does the device do after a power outage?

The EAKCB-TM has an adjustable power failure memory: choose from always on, always off, or remember the previous state.

Does the device also work when there is WiFi interference?

The local physical switch on the device always works, even without internet. Automations and app control require an active Wi-Fi connection.

What is the difference with the MOES A5?

The EAKCB-TM works via Wi-Fi and doesn't require a Zigbee hub – ideal for easy setup. The MOES A5 works via Zigbee, integrates fully locally and cloud-free with Home Assistant via Zigbee2MQTT, and also functions as a Zigbee router.
